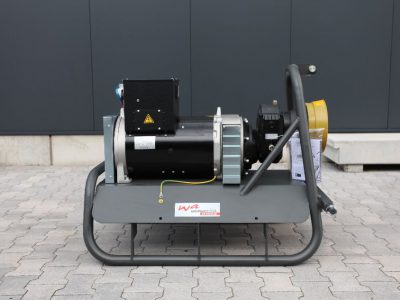

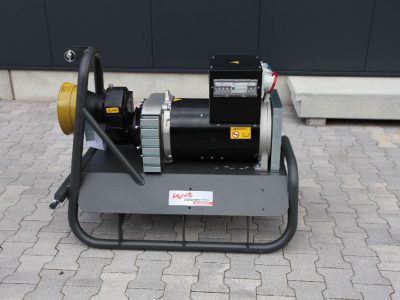

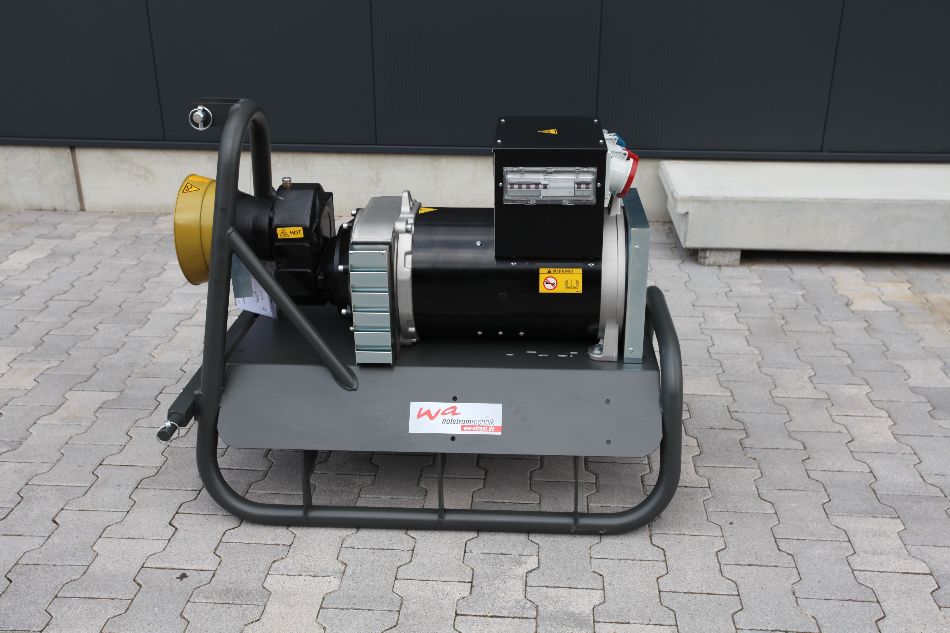

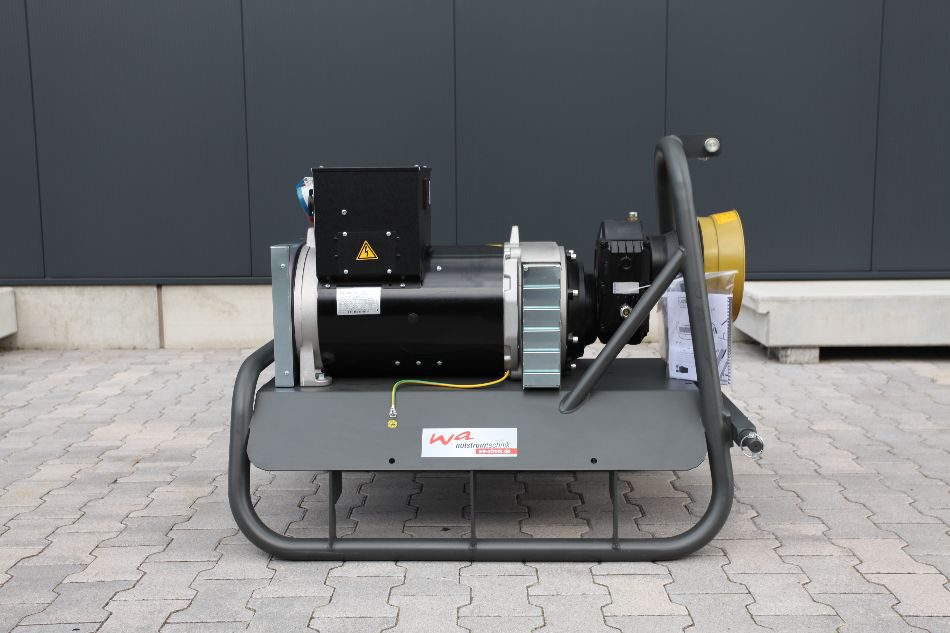

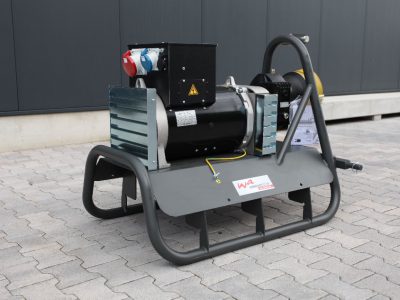

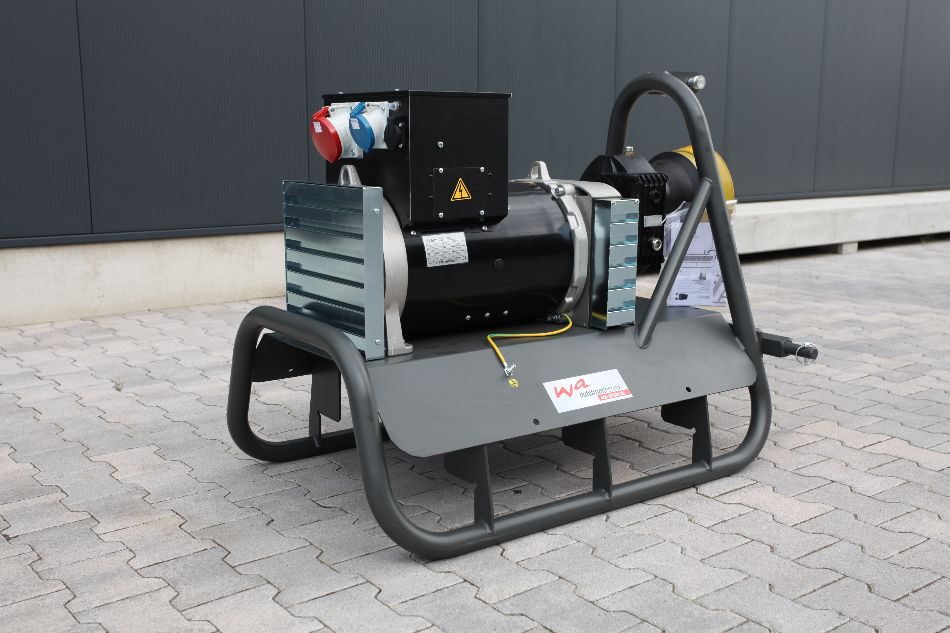

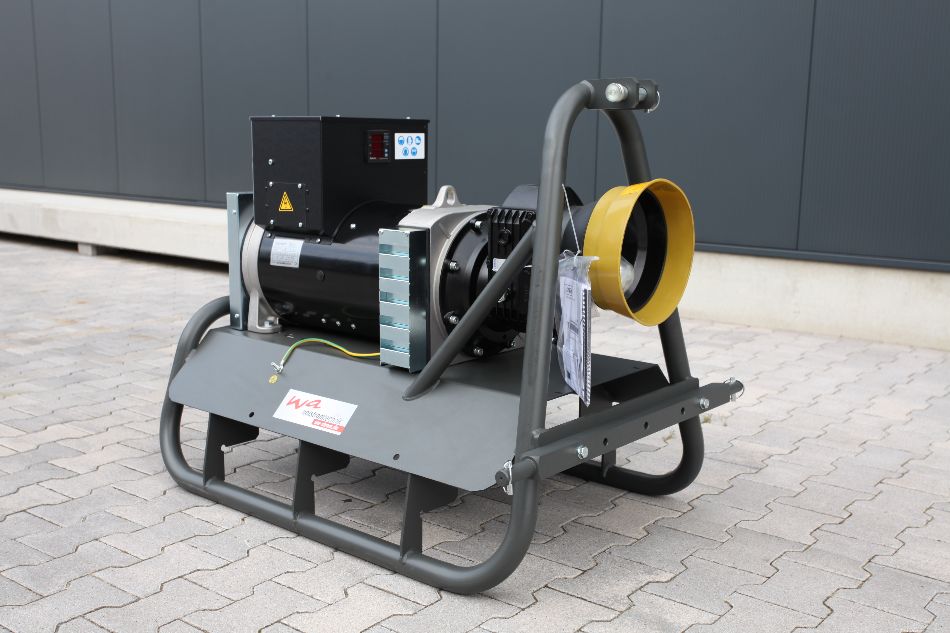

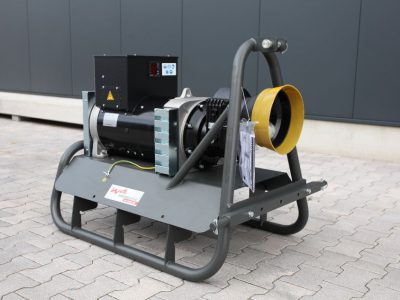

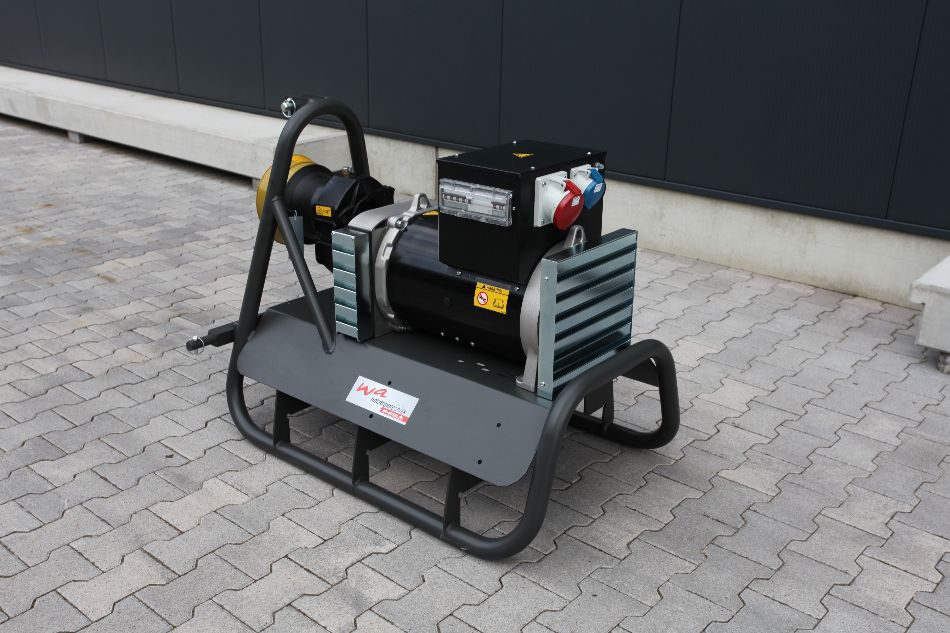

PTO generator 45 kVA – Brushless with electronic voltage regulator AVR – synchronous
Our PTO power generators are the perfect solution for farmers looking for an inexpensive yet effective way of providing themselves with electricity even during a power outage.
| PTO generator |
WA-ZB 45/4 |
| EAN | 0619915364123 |
| Power generator 3-phase | |
| Continuous power / kVA | 45 |
| Efficiency / % | 91,7 |
| Voltage / Volt | 400/230 |
| Frequency / Hz | 50 |
| Power generator 1-phase | |
| Continuous power / kVA | 18,0 |
| Voltage / Volt | 230 |
| Frequency / Hz | 50 |
| Gear for 540er PTO power generator |
|
| Tractor power / mind. KW | 94 |
| Tractor power / min. PS | 128 |
| Number of revolutions PTO power generator / r.p.m | 430 |
| Number of revolutions generator / r.p.m | 1.500 |
| Required PTO power generator / NM | 1.333 |
| Dimensions base frame | |
| Length / mm | 1.135 |
| Width / mm | 800 |
| Height / mm | 915 |
| Weight / kg | 301 |

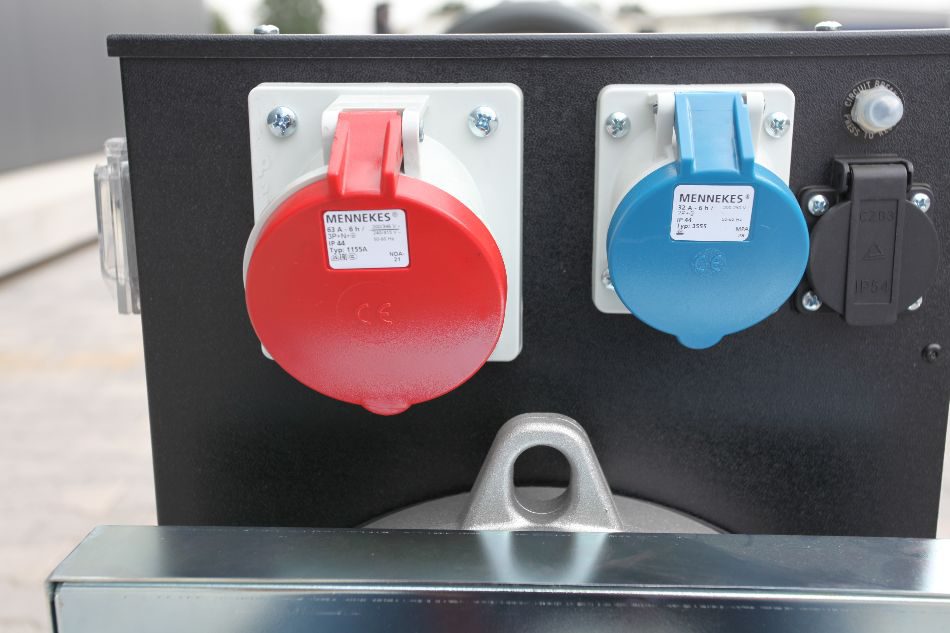

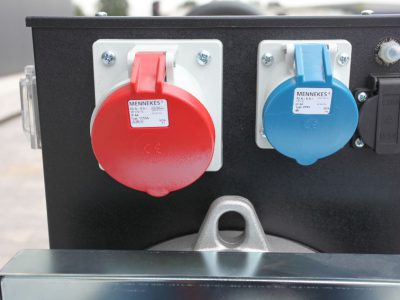

| Sockets / Mennekes |
|
| 230 Volt CEE IP67 / 32 Amp. | yes |
| 400 Volt CEE IP67 /32 Amp. | -/- |
| 400 Volt CEE IP67 / 63 Amp. | yes |
| 400 Volt CEE IP67 / 125 Amp. | -/- |
| Standard equipment / 2 years guarantee | |
| Operating hours counter / digital | yes |

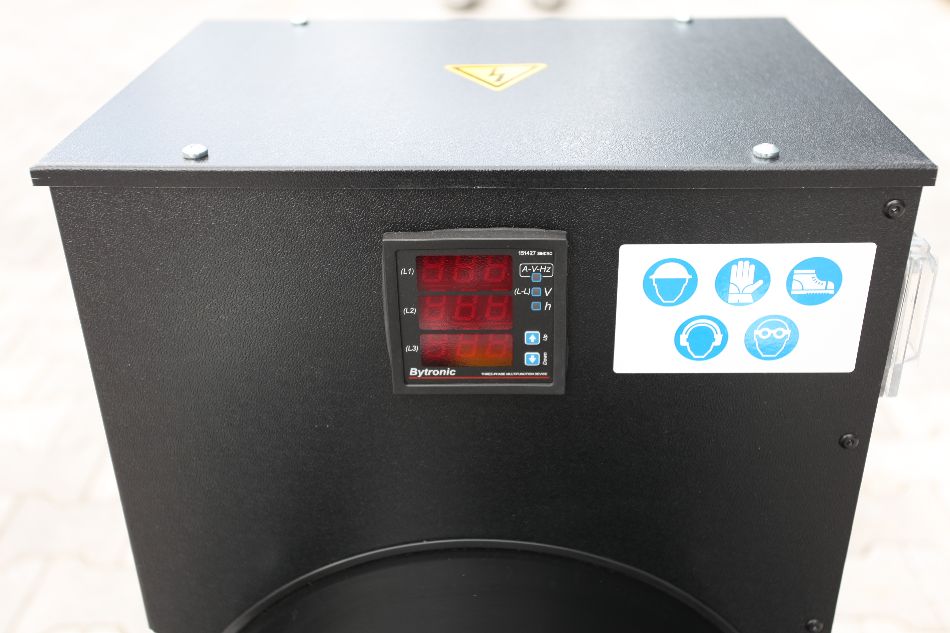

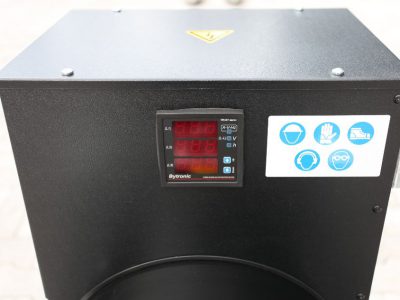

| Voltage display / digital | yes |
| Amperemeter / digital | yes |
| Rate monitor / digital | yes |

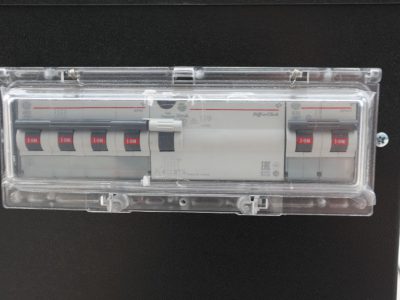

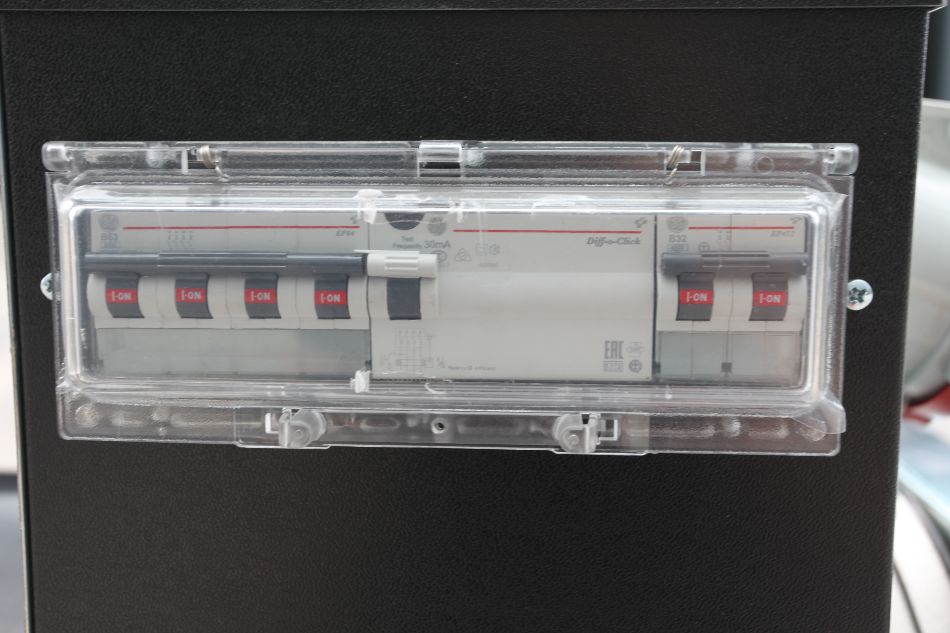

| GFCI / ID = 0,03 A | yes |
| Generator switch / 4-pole | yes |
| Short circuit current / 3,5 x innen | yes |
| Voltage accuracy / +/- 1% | yes |
| Insulation class H | yes |
| Protection / IP 44 | yes |
| Three point suspension | yes |
| Transmission oil filling / factory | yes |
| Instruction manual / german | yes |
| Propshaft splash | yes |
| Voltage regulation / AVR 3-phase | yes |
| Operational / at delivery | yes |
| CE / 2006/95/EG | yes |
| Overthrow secure base frame | yes |
| Overload protection | yes |
| Plant test run | yes |
| Price € / net plus VAT | € 5.200 |
| Options only in conjunction with the POT power generator / Price € net plus VAT | |
| Cross earthe electrode / with 5 m electric wire | € 56 |
| Switch power generator / building installation | € 320 |
| Voltage and Hz monitoring / built-in | € 550 |
| ISO-Sentinel space / house operation | on demand |
