Our WA-Deutz power generator – 20-500 kVA – 1.500 r.p.m – diesel- watercooled

Power generator	kVA 100 % PRP*	Motortype
WA-D 20	20	F 3 M 2011
WA-D 30	30	F 4 M 2011
WA-D 40	40	BF 4 M 2011
WA-D 60	60	BF 4 M 2011 C
WA-D 85	85	BF 4 M 1013 E
WA-D 100	105	BF 4 M 1013 EC
WA-D 130	130	BF 4M 1013 FC
WA-D 150	150	BF 6 M 1013 EC
WA-D 180	180	BF 6 M 1013 FCP
WA-D 200	200	BF 6 M 1013 FCP
WA-D 250	250	TCD 2013 L06-4V
WA-D 300	300	BF 6 M 1015 C
WA-D 380	380	BF 6 M 1015 CP
WA-D 430	430	BF 8 M 1015 C
WA-D 450	450	BF 8 M 1015 C
WA-D 500	500	BF 8 M 1015 CP

*Prime Power PRP. Maximum power for variable load, no time limit per year. The average 24 hours operation should not exceed 80% of that power. For control purposes an thrust harder Maschinery is an overload of 10% for 1 hour within 12 hours permitted. Mode according to ISO 8528. The maintenace is to be considered.

Power generator	Power KWm.	Consumption 100 % Last PRP
WA-D 20	20 KW	5,76 L/h
WA-D 30	27,6 KW	7,06 L/h
WA-D 40	36,4 KW	9,10 L/h
WA-D 60	52,0 KW	13,24 L/h
WA-D 85	78,5 KW	19,99 L/h
WA-D 100	91,1 KW	21,82 L/h
WA-D 130	112 KW	29,40 L/h
WA-D 150	138,1 KW	32,00 L/h
WA-D 180	159,8 KW	45,90 L/h
WA-D 200	178,6 KW	45,63 L/h
WA-D 250	250 KW	49,90 L/h
WA-D 300	271 KW	63,00 L/h
WA-D 380	327 KW	81,00 L/h
WA-D 430	369 KW	88,00 L/h
WA-D 450	396 KW	94,00 L/h
WA-D 500	441 KW	110,00 L/h

Power generator	Datasheet
WA-D 20	PDF
WA-D 30	PDF
WA-D 40	PDF
WA-D 60	PDF
WA-D 85	PDF
WA-D 100	PDF
WA-D 130	PDF
WA-D 150	PDF
WA-D 180	PDF
WA-D 200	PDF
WA-D 250	PDF
WA-D 300	PDF
WA-D 380	PDF
WA-D 430	PDF
WA-D 450	PDF
WA-D 500	PDF

“G” On sled frame

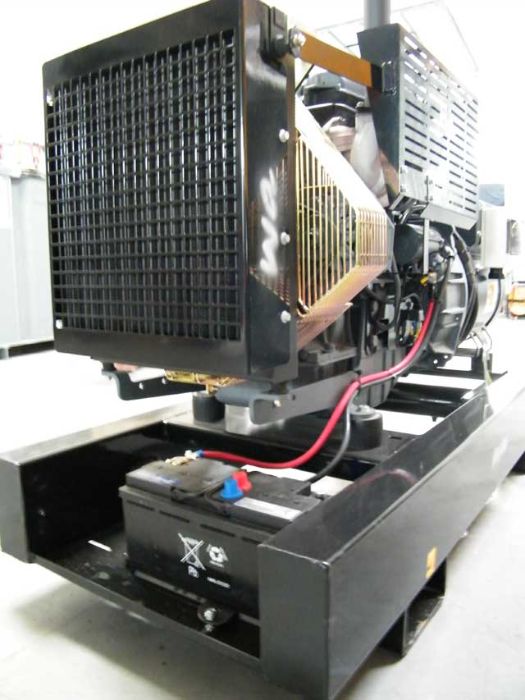

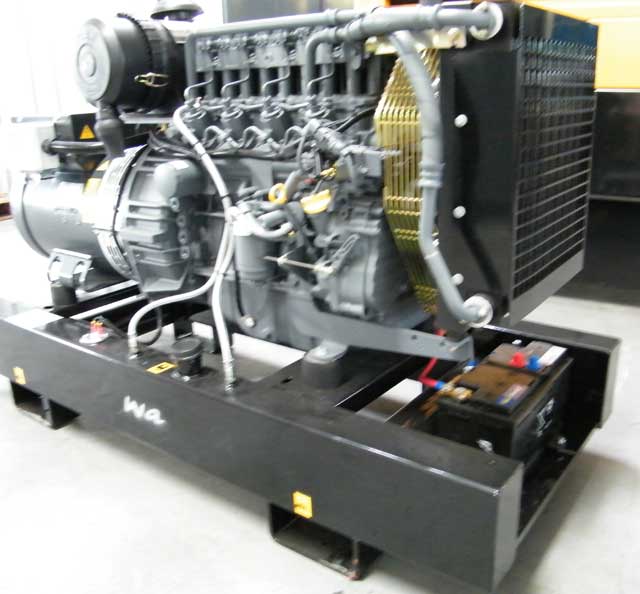

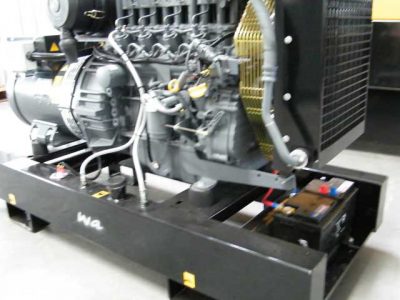

Stationary version (open type) sled frame “G”

Power generator	Fueltank L	Lenghth mm
WA-D 20 “G”	80	1.400
WA-D 30 “G”	105	1.700
WA-D 40 “G”	105	1.700
WA-D 60 “G”	192	1.900
WA-D 85 “G”	195	2.050
WA-D 100 “G”	212	2.050
WA-D 130 “G”	224	2.250
WA-D 150 “G”	236	2.500
WA-D 180 “G”	236	2.500
WA-D 200 “G”	236	2.500
WA-D 250 “G”	490	3.000
WA-D 300 “G”	562	2.750
WA-D 380 “G”	562	2.750
WA-D 430 “G”	550	3.000
WA-D 450 “G”	550	3.000
WA-D 500 “G”	550	3.000

Power generator	Width mm	Height mm
WA-D 20 “G”	760	1.560
WA-D 30 “G”	730	1.520
WA-D 40 “G”	730	1.406
WA-D 60 “G”	900	1.625
WA-D 85 “G”	930	1.683
WA-D 100 “G”	930	1.717
WA-D 130 “G”	1.035	1.475
WA-D 150 “G”	1.035	1.607
WA-D 180 “G”	1.035	1.840
WA-D 200 “G”	1.035	1.840
WA-D 250 “G”	1.200	1.795
WA-D 300 “G”	1.515	2.252
WA-D 380 “G”	1.515	2.380
WA-D 430 “G”	1.815	2.406
WA-D 450 “G”	1.815	2.410
WA-D 500 “G”	1.815	2.406

Power generator	Weight KG
WA-D 20 “G”	550
WA-D 30 “G”	640
WA-D 40 “G”	720
WA-D 60 “G”	820
WA-D 85 “G”	1.240
WA-D 100 “G”	1.300
WA-D 130 “G”	1.460
WA-D 150 “G”	1.580
WA-D 180 “G”	1.620
WA-D 200 “G”	1.820
WA-D 250 “G”	2.200
WA-D 300 “G”	2.940
WA-D 380 “G”	3.260
WA-D 430 “G”	3.300
WA-D 450 “G”	3.800
WA-D 500 “G”	4.030

“S” Silenced

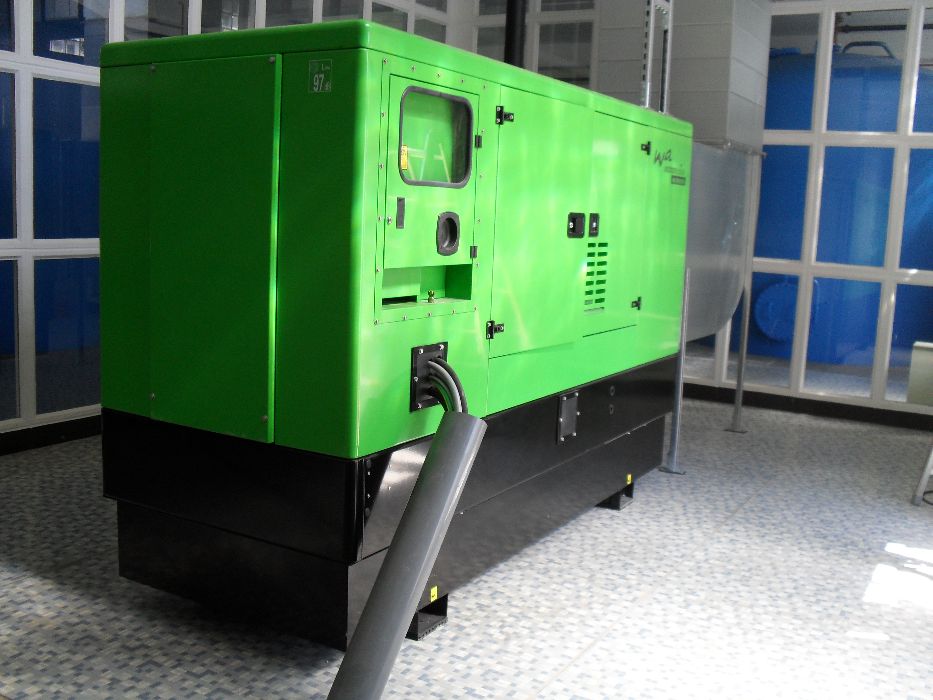

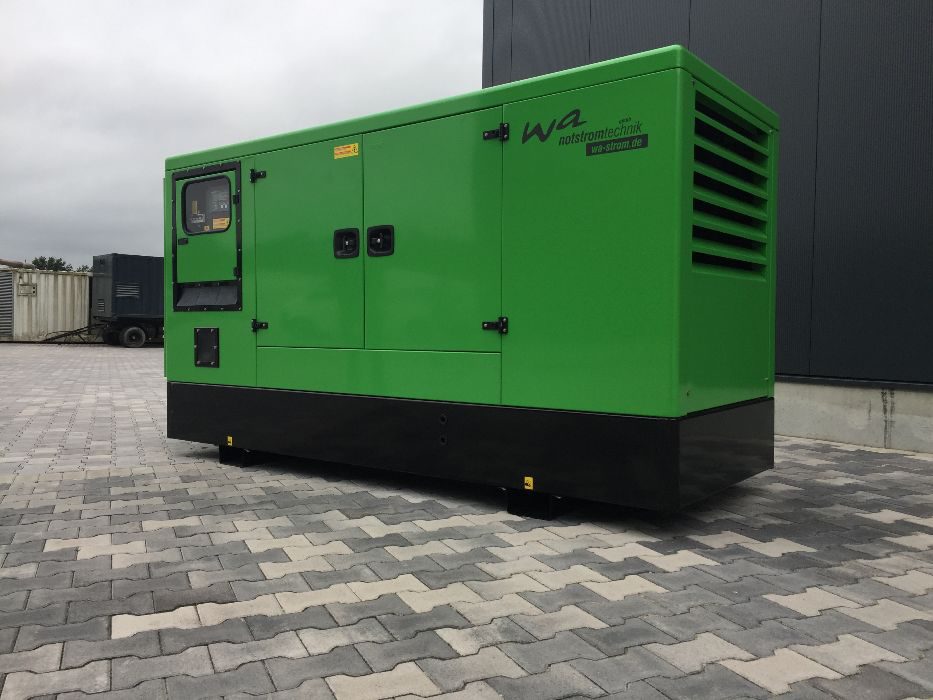

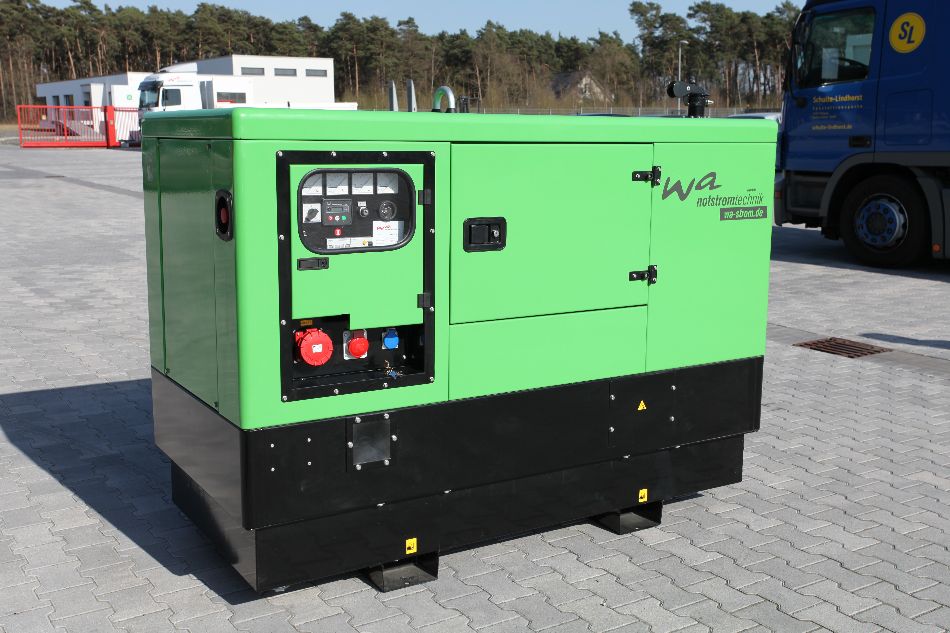

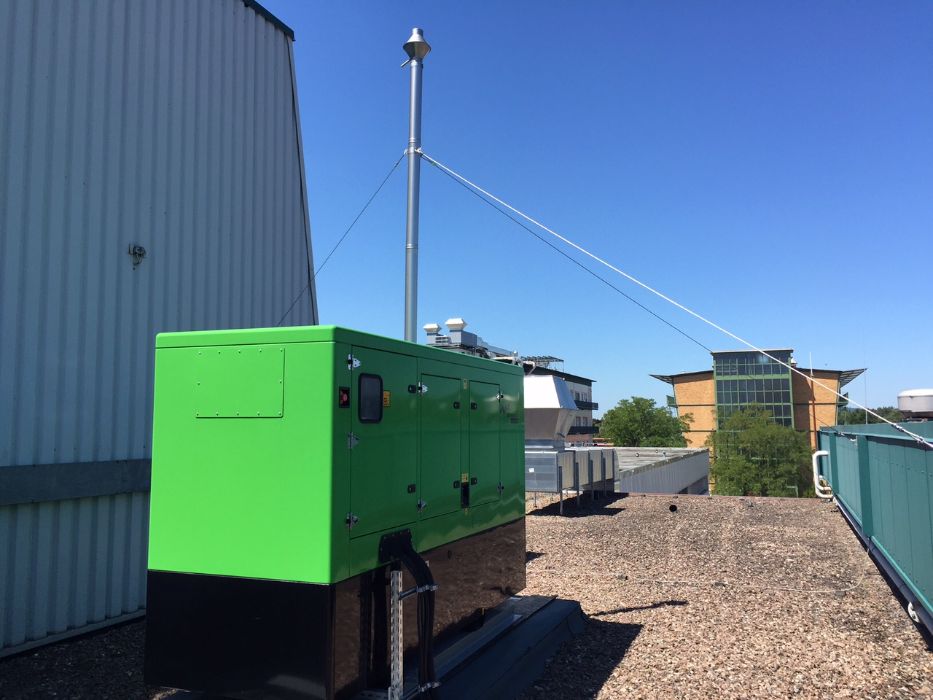

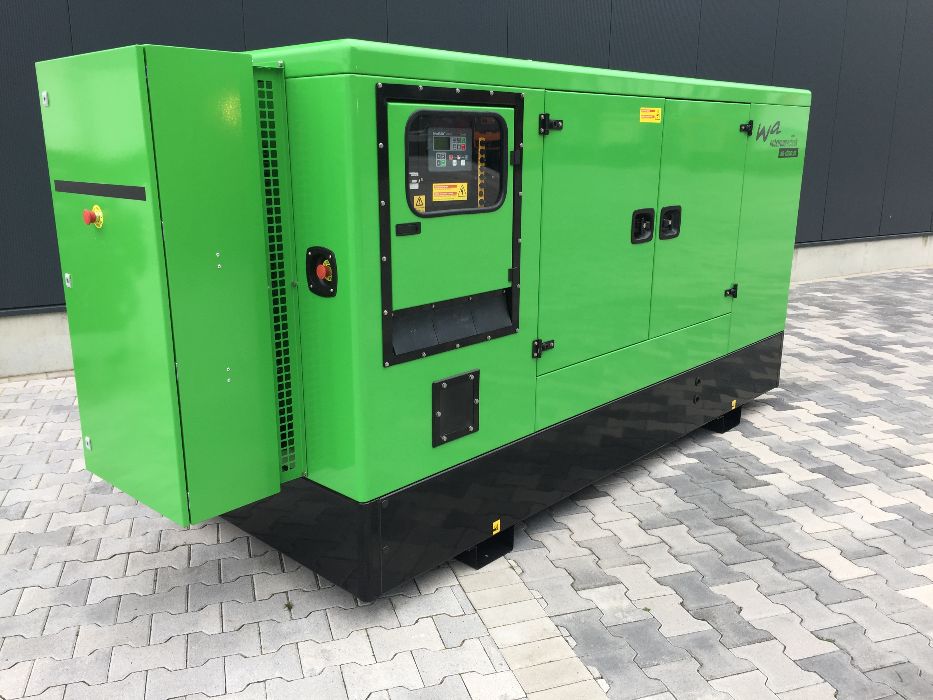

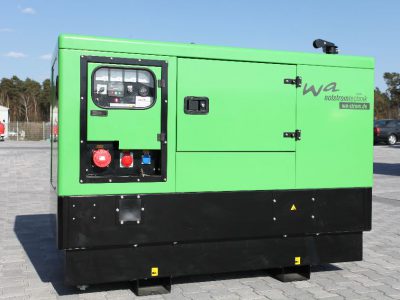

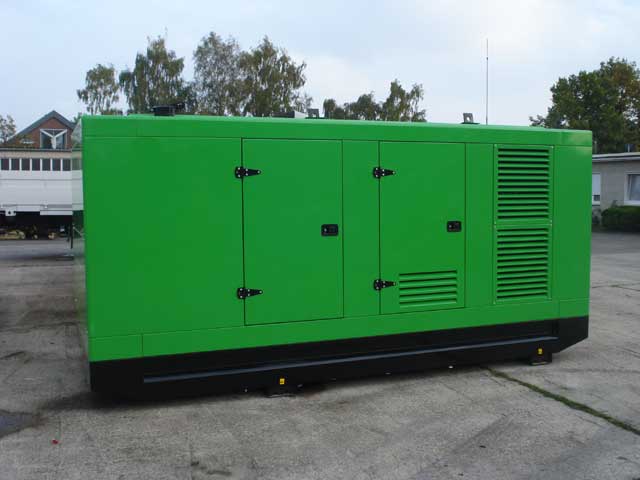

Silenced version (with insulation) “S”

Power generator	Fueltank L	db(A)* 7 Meter
WA-D 20 “S”	85	60
WA-D 30 “S”	85	66
WA-D 40 “S”	85	66
WA-D 60 “S”	85	66
WA-D 85 “S”	220	64
WA-D 100 “S”	220	70
WA-D 130 “S”	220	70
WA-D 150 “S”	360	72
WA-D 180 “S”	360	69
WA-D 200 “S”	360	69
WA-D 250 “S”	360	69.4
WA-D 300 “S”	534	72
WA-D 380 “S”	534	72
WA-D 430 “S”	1.000	72
WA-D 450 “S”	1.000	76
WA-D 500 “S”	1.000	76

* db(A) measured at 7 meters as the average of all-round measurement at 7 measuring points

Power generator	Length mm	Width mm
WA-D 20 “S”	2.000	950
WA-D 30 “S”	2.000	950
WA-D 40 “S”	2.000	950
WA-D 60 “S”	2.500	1.100
WA-D 85 “S”	2.950	1.100
WA-D 100 “S”	2.950	1.100
WA-D 130 “S”	2.950	1.100
WA-D 150 “S”	2.950	1.110
WA-D 180 “S”	3.600	1.350
WA-D 200 “S”	3.600	1.350
WA-D 250 “S”	3.600	1.350
WA-D 300 “S”	4.200	1.600
WA-D 380 “S”	4.200	1.600
WA-D 430 “S”	4.860	2.060
WA-D 450 “S”	4.860	2.060
WA-D 500 “S”	4.860	2.060

Power generator	Height mm	Weight KG
WA-D 20 “S”	1.353	875
WA-D 30 “S”	1.353	946
WA-D 40 “S”	1.353	962
WA-D 60 “S”	1.455	1.440
WA-D 85 “S”	1.759	1.780
WA-D 100 “S”	1.759	1.840
WA-D 130 “S”	1.759	2.120
WA-D 150 “S”	1.759	2.350
WA-D 180 “S”	2.040	2.960
WA-D 200 “S”	2.040	3.060
WA-D 250 “S”	2.040	3.340
WA-D 300 “S”	2.245	4.005
WA-D 380 “S”	2.245	4.460
WA-D 430 “S”	2.630	6.000
WA-D 450 “S”	2.630	6.100
WA-D 500 “S”	2.630	6.380

All data in basic model or series delivery

Basic equipment Deutz power generator

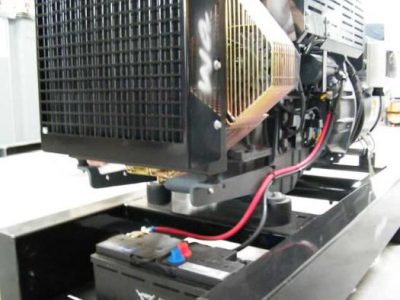

GenSet: The complete gen set is mounted on a steel base frame. On the steel base frame are specially designed devices, for lifting with a crane or Forklift. The diesel engine and the alternator are connected to a SAE-flange, that even a longer period of operation no possibility of an adjustment exists. The daily fuel tank is integrated in the steel base frame. The starter batteries of 12 or 24 volts are fixed on the steel base frame. Preheating-system 230 Volt DC.

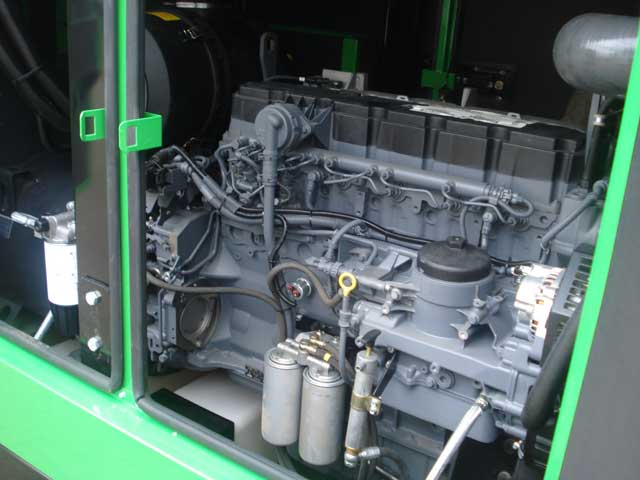

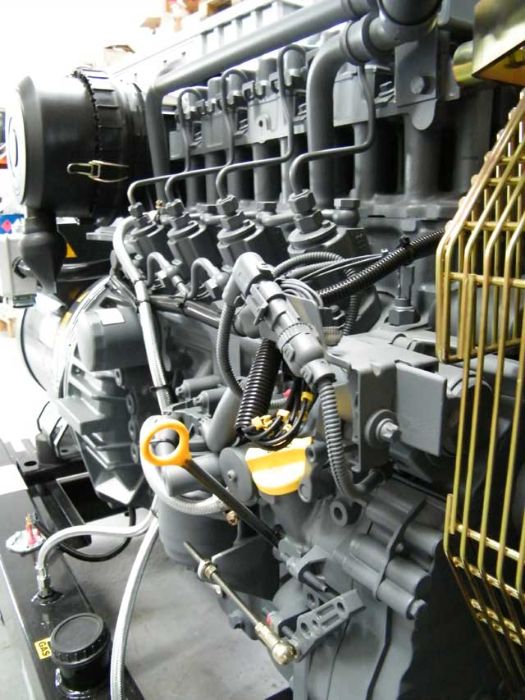

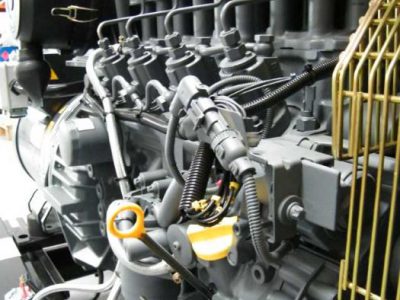

Engine: Deutz industrial diesel 4-stroke direct injection, liquid cooled 1.500 rpm (50 Hz). Low oil and fuel consumption with long maintenance intervals make a very economic engine application.

Alternator: Mecc Alte alternator, brushless self-exciting, self-regulating with electronic voltage regulator (AVR) according to VDE 0530, 400/230 volts, 4-pole, insulation class H.

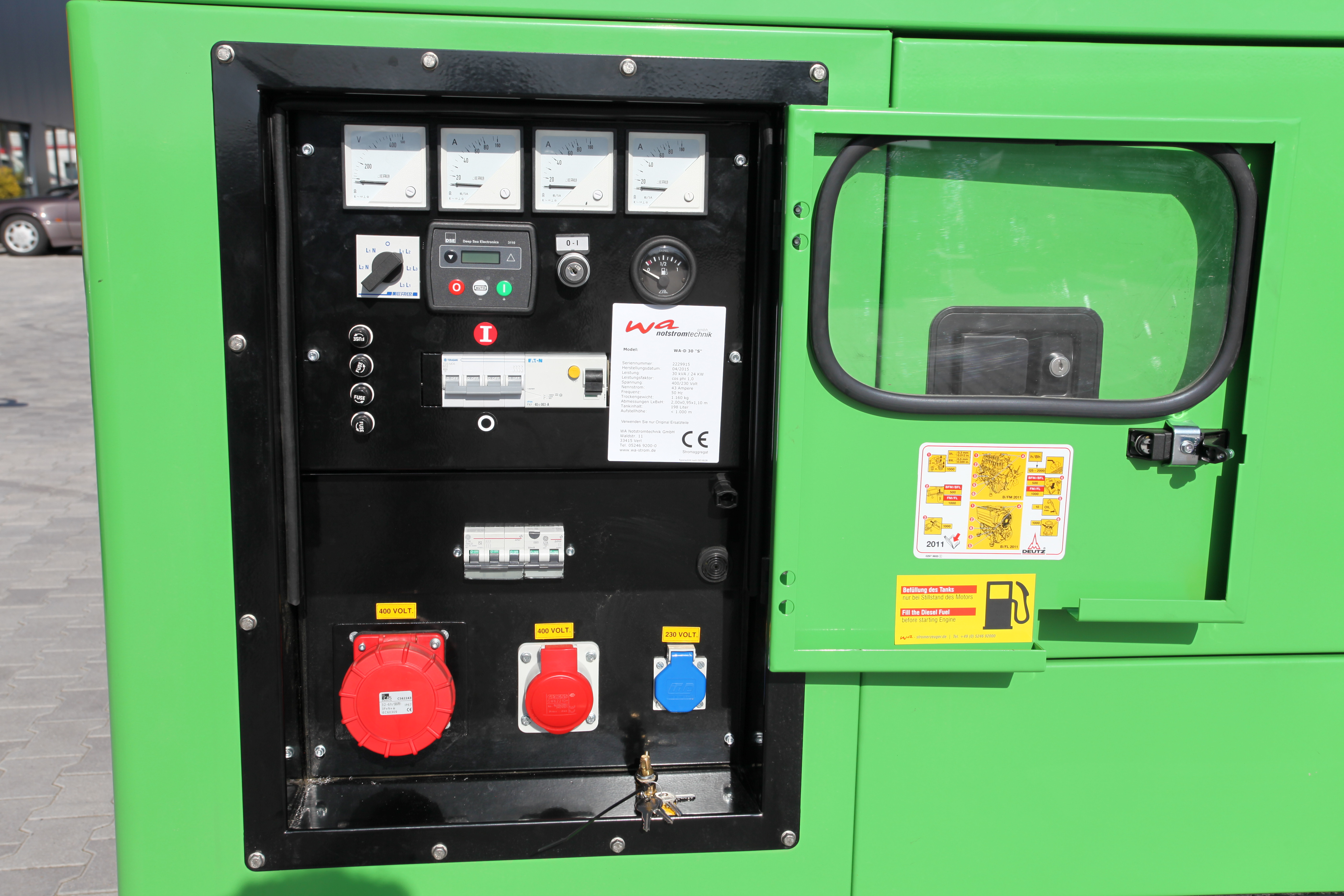

Control Panel: manual start-stop-system with engine shutdown during monitoring, when low oil pressure (LOP), High temperate (HWT) and overspeed. Alternator switch, 3-pole with thermal and magnetic protection. Frequency meter, hours counter, voltmeter, ampere meter, optical and acoustic alarm. Electronic engine speed governor, AMF automatic control panel with ATS, for parallel operation with the mains supply or peak looping operation.

Tank: 24h fuel tank, automatic fuel-fill-system.

Trailer: 1 or 2 axle trailer.

Options: For all power generator is a wide range of accessories available.

Technical changes: We keep ahead.

Deutz power generators series WA-D 20-500 kVA

“G” On sled frame

“S” Silenced
