Kohler power generator series WA-K 8-60 kVA

 Power generators with Kohler engine and 1.500 rpm, 230/400 Volt

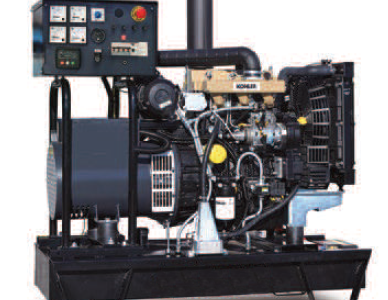

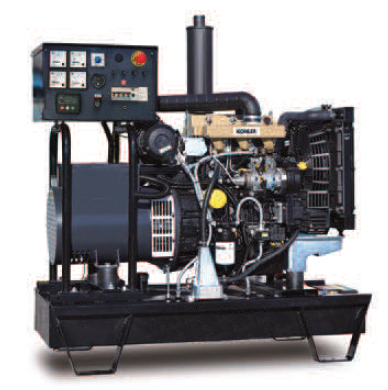

Stationary version (open type) sled frame “G”

Kohler power generator
 kVA 100 %
PRP*
 Motor type
WA-K 8 “G”
 8 KDW 1003
WA-K 10 “G”
 10 KDW 1404
WA-K 15 “G”
 15 KDW 1603
WA-K 20 “G”
 20 KDI 1903M
WA-K 27 “G”
 27 KDI 2504M
WA-K 30 “G”
 30 KDI 2504 TM30
WA-K 40 “G” 40 KDI 2504 TM
WA-K 60 “G” 60 KDI 3404 TM

*Variable Continuous Power PRP (Prime Power) Maximum power for variable load, without time limit per year. The average 24-hour operation should not exceed 80% of this capacity. For control purposes and the commissioning of heavy machinery, a 10% overload is allowed within 12 hours for 1 hour. Operating mode according to ISO 8528. Maintenance is to be taken into account.

Kohler power generator
 Power
kWm
 Consumption at
100 % Load PRP
WA-K 8 “G”
 7,7 kWm 2,6 L/h
WA-K 10 “G”
 10,5 kWm 3,4 L/h
WA-K 15 “G”
 14,1 kWm 4,8 L/h
WA-K 20 “G”
 17,3 kWm 4,8 L/h
WA-K 27 “G”
 23,1 kWm 6,2 L/h
WA-K 30 “G”
 28,2 kWm 7,76 L/h
WA-K 40 “G” 37,3 kWm 10,3 L/h
WA-K 60 “G” 55,4 kWm 14,6 L/h



Kohler power generator
 Length
in mm
 Width
in mm
WA-K 8 “G”
 1300 580
WA-K 10 “G”
 1300 580
WA-K 15 “G”
 1300 580
WA-K 20 “G”
 1300 580
WA-K 27 “G”
 1700 730
WA-K 30 “G”
 1700 730
WA-K 40 “G” 1700 730
WA-K 60 “G” 1900 900



Kohler power generator
 Height
in mm		 Tank capacity
in L
WA-K 8 “G”
 1298 80
WA-K 10 “G”
 1298 80
WA-K 15 “G”
 1383 80
WA-K 20 “G”
 1398 80
WA-K 27 “G”
 1633 105
WA-K 30 “G”
 1614 105
WA-K 40 “G” 1614 105
WA-K 60 “G” 1955 192



Kohler power generator
 Weight
in KG
WA-K 8 “G”
 310
WA-K 10 “G”
 350
WA-K 15 “G”
 398
WA-K 20 “G”
 460
WA-K 27 “G”
 590
WA-K 30 “G”
 610
WA-K 40 “G” 660
WA-K 60 “G” 860

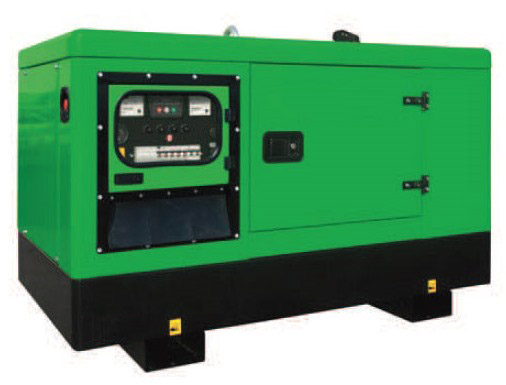

Silent version (with insulation) “S”

Kohler power generator
 kVA 100 %
PRP*
 Motor type
WA-K 8 “S”
 8 KDW 1003
WA-K 10 “S”
 10 KDW 1404
WA-K 15 “S”
 15 KDW 1603
WA-K 20 “S”
 20 KDI 1903M
WA-K 27 “S”
 27 KDI 2504M
WA-K 30 “S”
 30 KDI 2504 TM30
WA-K 40 “S” 40 KDI 2504 TM
WA-K 60 “S” 60 KDI 3404 TM

*Variable Continuous Power PRP (Prime Power) Maximum power for variable load, without time limit per year. The average 24-hour operation should not exceed 80% of this capacity. For control purposes and the commissioning of heavy machinery, a 10% overload is allowed within 12 hours for 1 hour. Operating mode according to ISO 8528. Maintenance is to be taken into account.

Kohler power generator
 Power
kWm
 Consumption at
100 % Load PRP
WA-K 8 “S”
 7,7 kWm 2,6 L/h
WA-K 10 “S”
 10,5 kWm 3,4 L/h
WA-K 15 “S”
 14,1 kWm 4,8 L/h
WA-K 20 “S”
 17,3 kWm 4,8 L/h
WA-K 27 “S”
 23,1 kWm 6,2 L/h
WA-K 30 “S”
 28,2 kWm 7,76 L/h
WA-K 40 “S” 37,3 kWm 10,3 L/h
WA-K 60 “S” 55,4 kWm 14,6 L/h



Kohler power generator
 Length
in mm
 Width
in mm
WA-K 8 “S”
 1600 900
WA-K 10 “S”
 1600 900
WA-K 15 “S”
 1600 900
WA-K 20 “S”
 2000 950
WA-K 27 “S”
 2000 950
WA-K 30 “S”
 2000 950
WA-K 40 “S” 2500 1100
WA-K 60 “S” 2500 1100



Kohler power generator
 Height
in mm		 Tank capacity
in L
WA-K 8 “S”
 1132 47
WA-K 10 “S”
 1132 47
WA-K 15 “S”
 1132 47
WA-K 20 “S”
 1253 85
WA-K 27 “S”
 1253 85
WA-K 30 “S”
 1253 85
WA-K 40 “S” 1455 85
WA-K 60 “S” 1455 85



Kohler power generator
 Weight
in KG
WA-K 8 “S”
 550
WA-K 10 “S”
 600
WA-K 15 “S”
 655
WA-K 20 “S”
 825
WA-K 27 “S”
 950
WA-K 30 “S”
 970
WA-K 40 “S” 1200
WA-K 60 “S” 1340

All data of Kohler power generators for basic model or for series delivery
