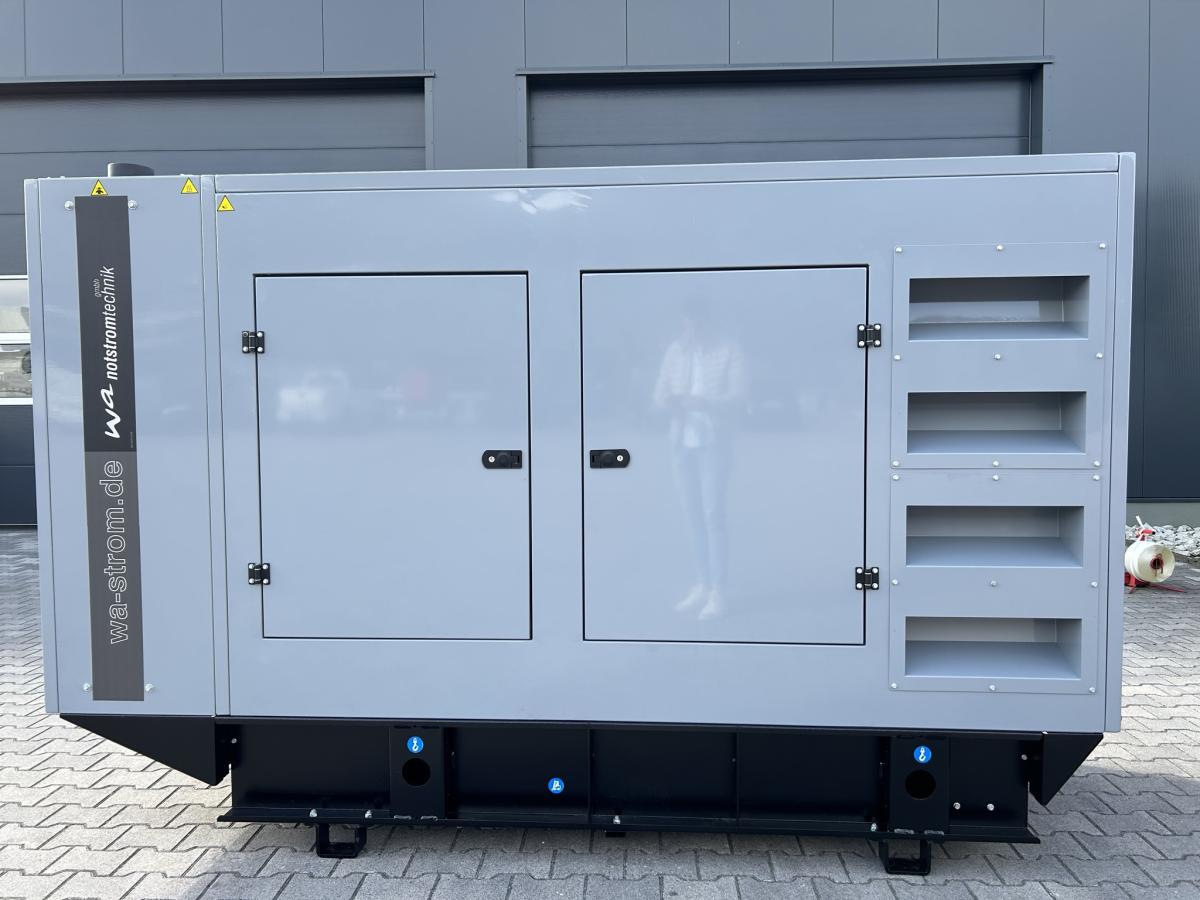

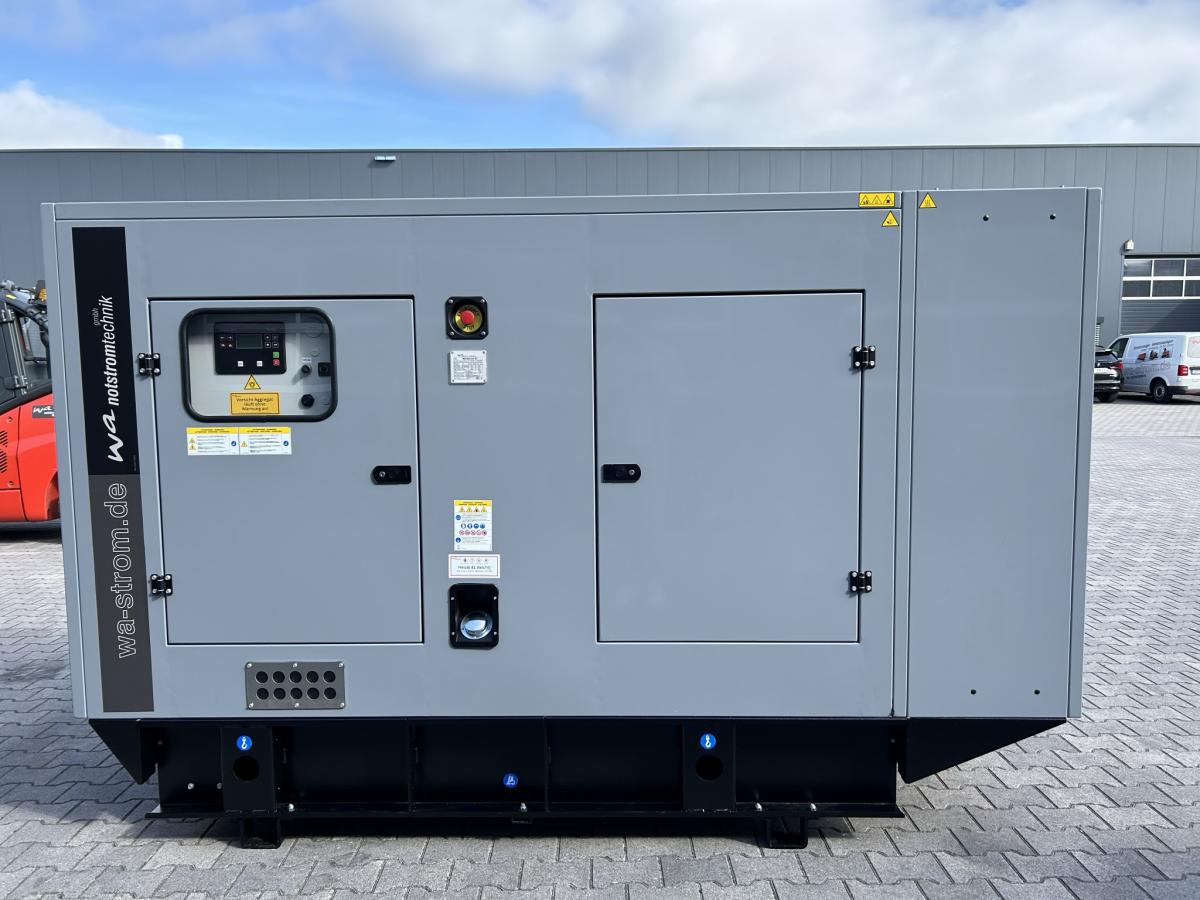

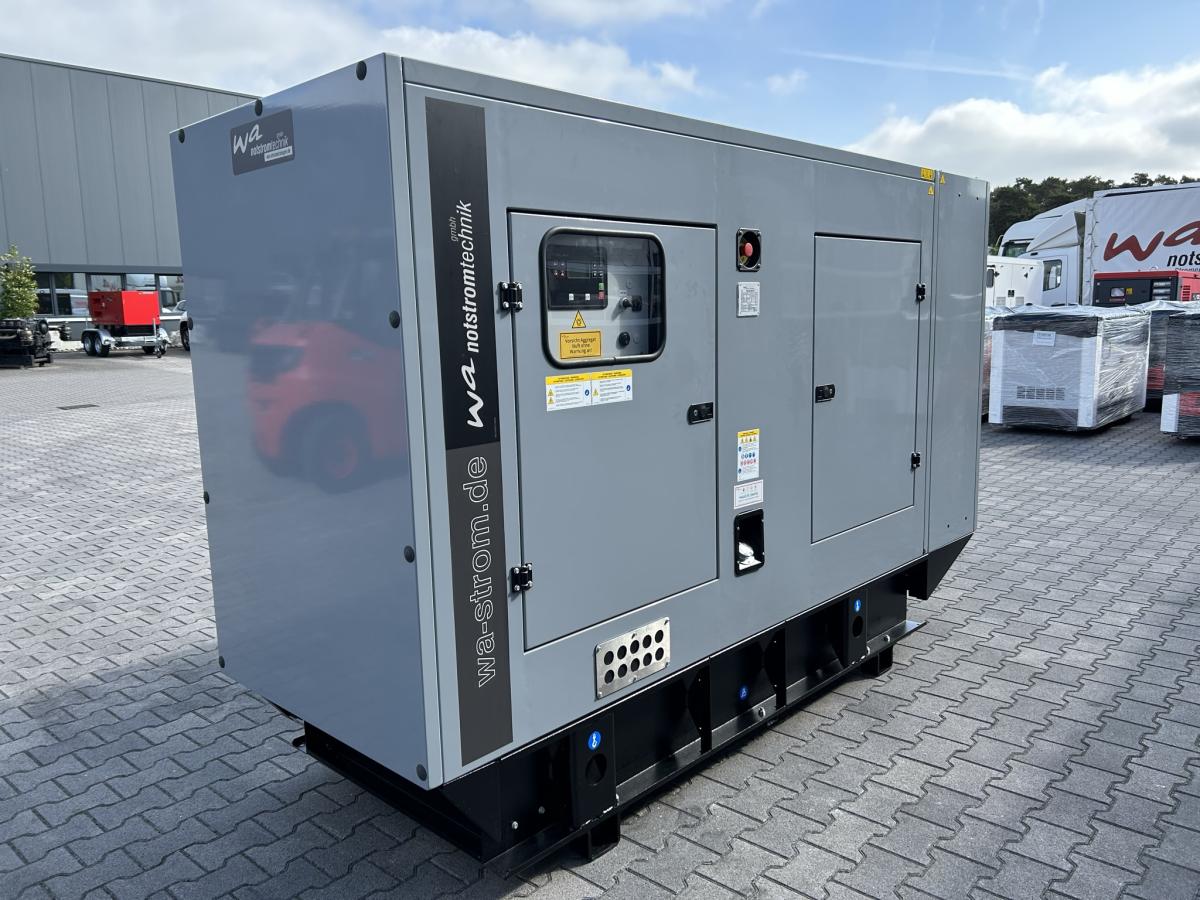

Super-silenced emergency power system as backup power supply with Deutz engine and 270 liter tank
Stock No.
1370
1370
Completion:
Generating Set:
stationary
Gen Set:
silent Set
Technical Data Engine:
Engine Manufacturer:
Deutz AG
Engine Type:
BF 4 M 1013 EC
Engine No.:
auf Anfrage
Engine Power:
93 KW
Cooling:
water-cooled
Starting:
electrical 12 V DC
Rotation:
1500 rpm
Fuel:
heating oil EN 590
Technical Data Generator:
Generator Manufacturer:
Stamford AvK
Gen Set:
Sychron mit AVR
Gen No.:
auf Anfrage
Gen Power:
100 kVA
Voltage:
400 / 231 Volt
Power Factor:
cos. - phi 0,8
Rotation:
1500 rpm
Control Unit:
Setup:
automatic start
Functions:
emergency power
Switch:
gen switch 4 pole
Delivery:
set up
Width ca. mm:
Height ca. mm:
Depth ca. mm:
Fuel Tank:
Setup:
baseframe fuel tank with bassin
Width ca. mm:
Height ca. mm:
Depth ca. mm:
Capacity / Litre:
270
Dimensions of unit:
Width ca. mm:
1.080
Height ca. mm:
1.910
Length ca. mm:
2.980
Weigth ca. KG:
1.685
Usage:
Stock No:
1370
State:
New
year of manufacture:
2023
time of delivery:
ex work
Operating Hours:
1
Location:
Verl - Germany
Price plus VAT in €:
on request:
Reserved:
nein / no
delivery contents:

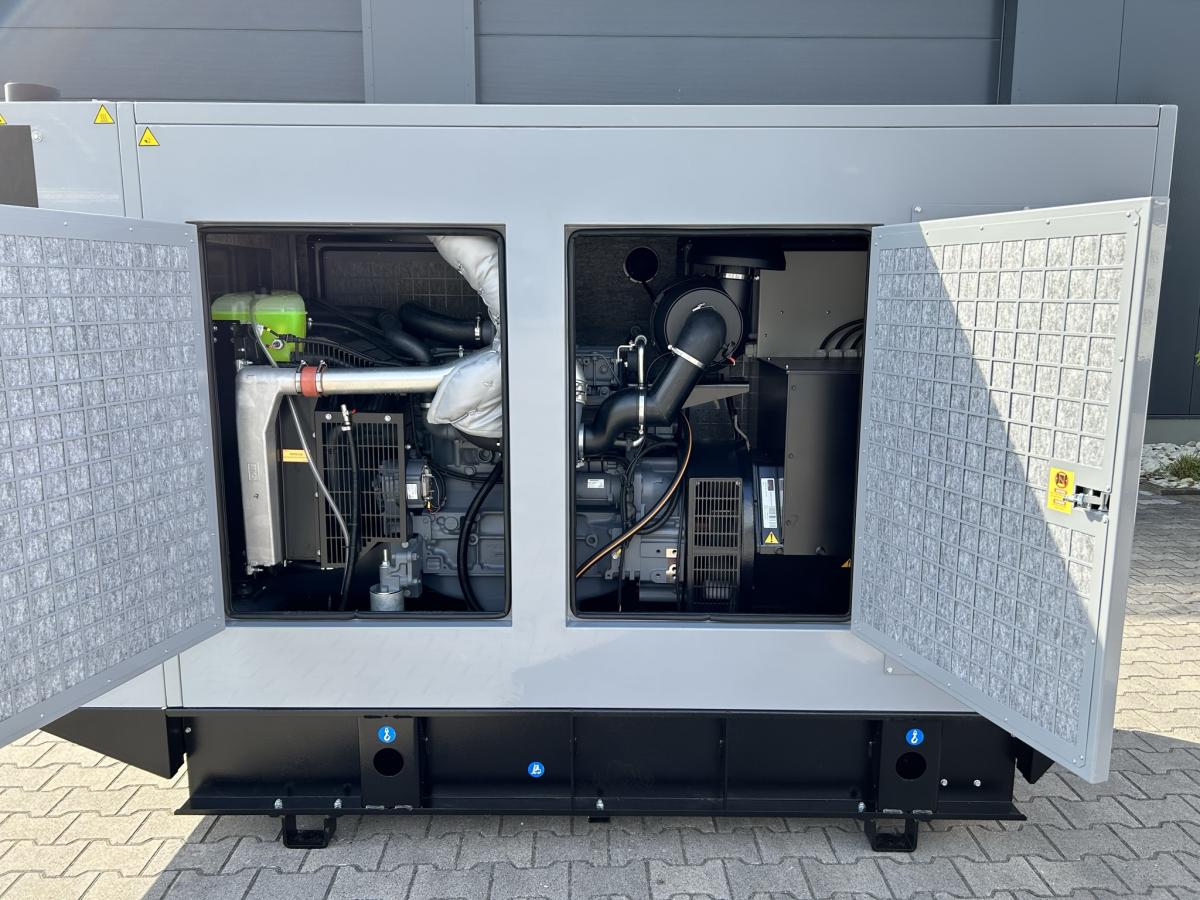

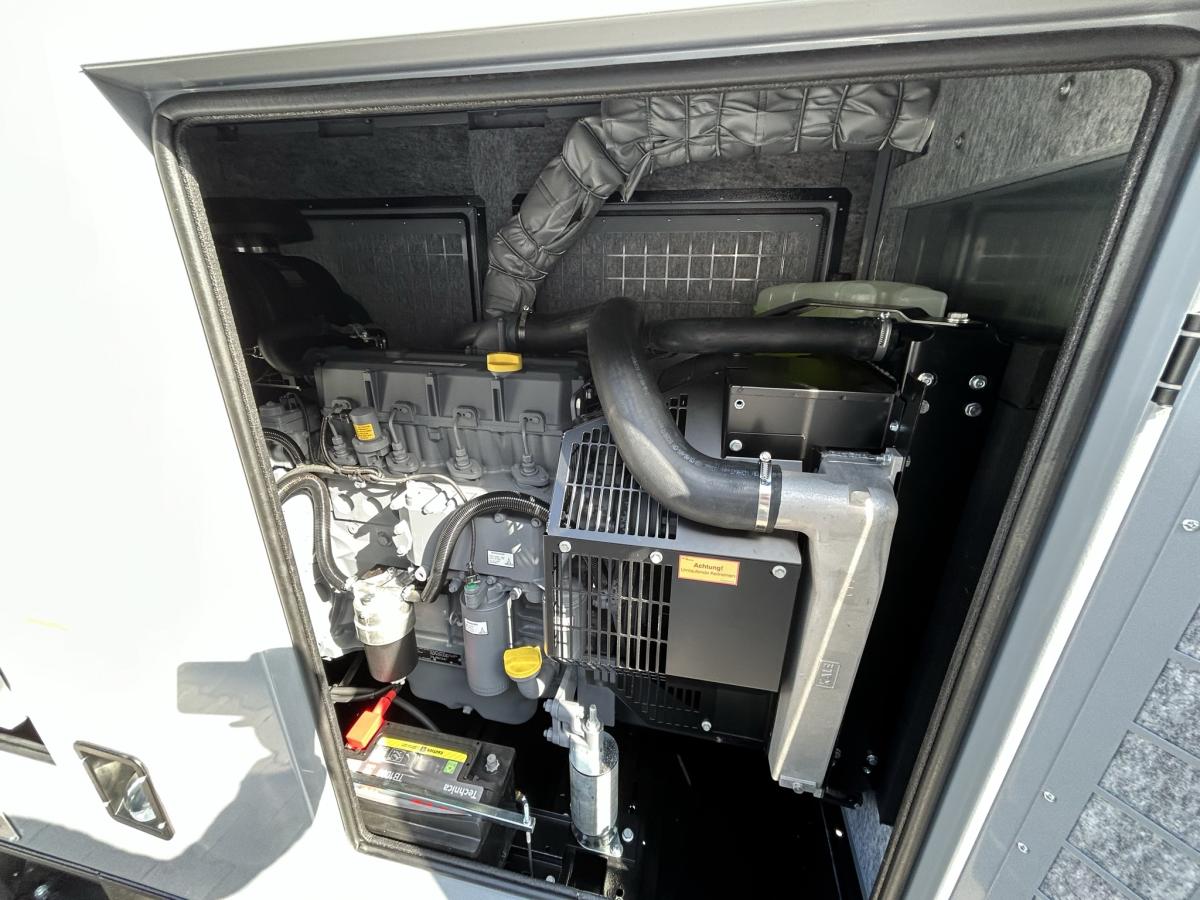

Emergency power system, emergency power supply as backup power supply with a Deutz industrial diesel engine with mechanical speed control and cooling water preheating (230 volts) and three-phase synchronous generator. Motor and generator are mounted elastically on a common skid frame.Other additional features:
Tank capacity 270 litres, refueling directly at the soundproofing hood
Fuel consumption at 50% load 12 litres/hour, sufficient for approx. 22.5 hours of operation
Fuel consumption at 100% load 23 litres/hour, sufficient for approx. 11.7 hours of operation

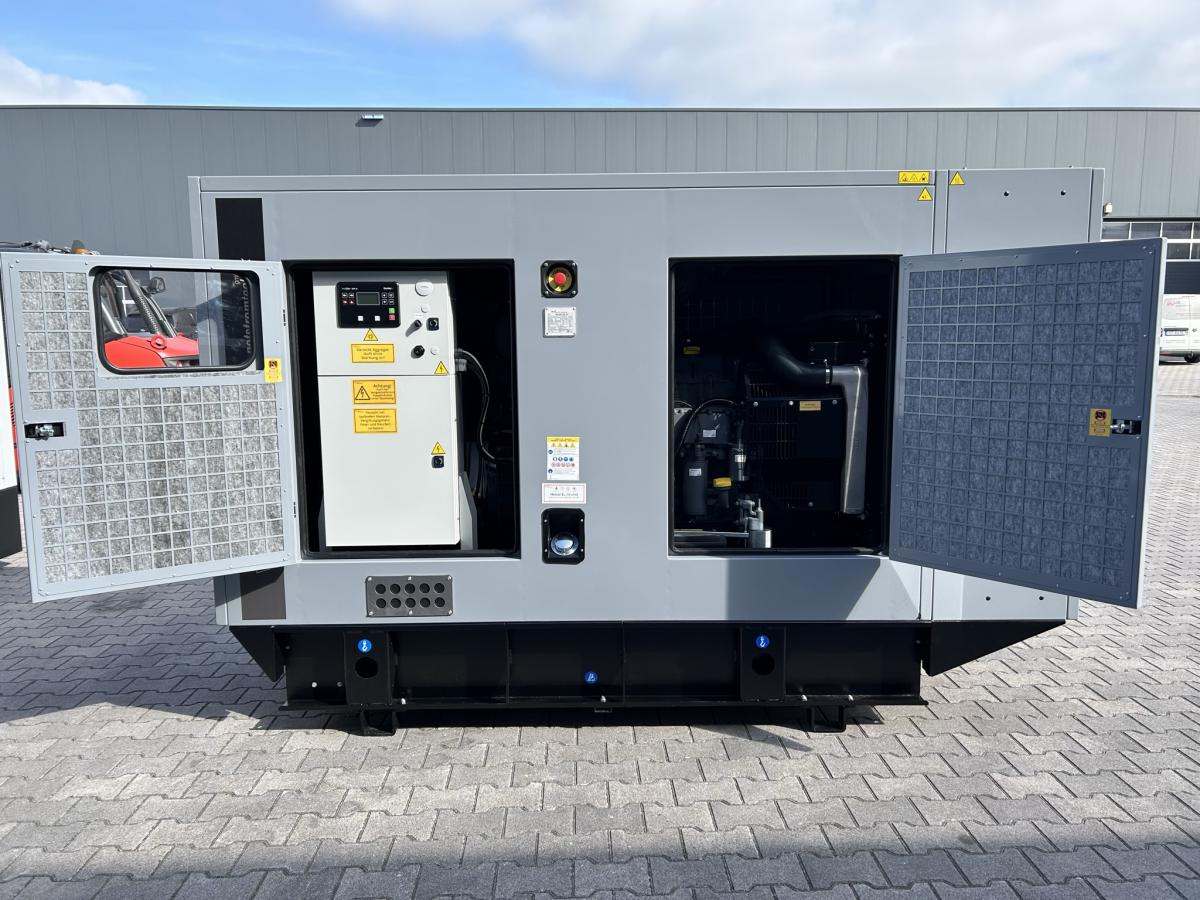

Internal automatic start-stop (type: Comap AMF 25) with display of all important engine and generator messages. Functional indication digitally on the display. 4-pin generator switch integrated on the unit (generator). Internal battery charger 230 volts - 12 volts DC
Automatic start with mains & generator switching 4-pole
Optional: External emergency power switchgear for installation in the building and 4-pole mains generator switchover with the following dimensions: Height: 700 mm Width: 500 mm Depth: 270 mm
Function: In the event of a power failure, the start command is sent to the diesel unit. When the nominal speed and nominal voltage are reached, the generator switch is switched on. When the mains returns, the automatic system monitors the mains voltage. When this is stable again, the system switches back to mains operation. The diesel unit is stopped after the cooling time and waits in automatic mode for the next power failure.
The emergency power system as an emergency power supply is ready for operation and immediately available from the Verl warehouse
