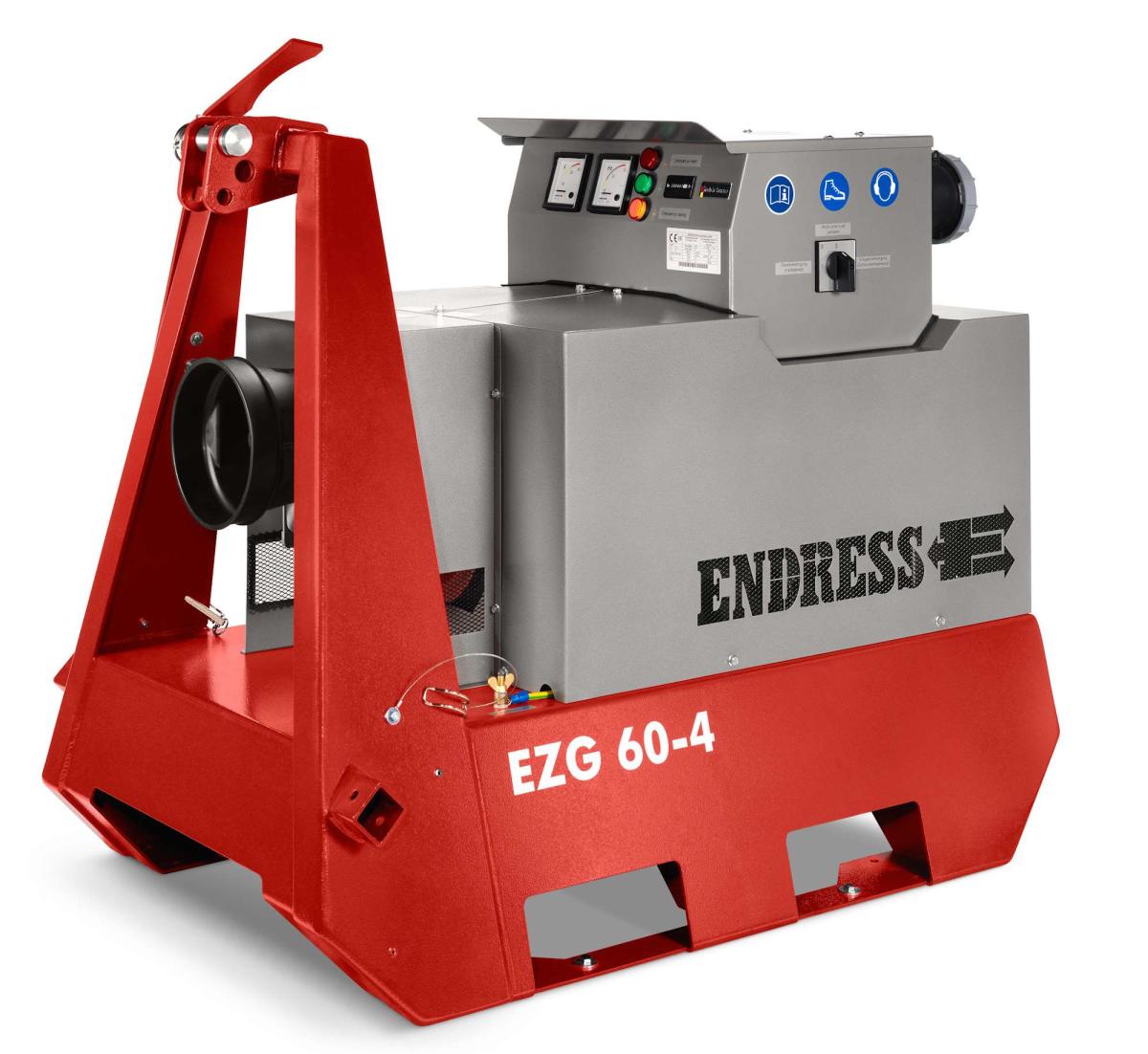

PTO generator 60 kVA and with switch field and house operation for IT & TN network and insulation monitoring
Stock No.
1400
1400
Completion:
Generating Set:
portable
Gen Set:
pto driven alternator
Technical Data Engine:
Engine Manufacturer:
Schlepper
Engine Type:
Engine No.:
Engine Power:
Cooling:
Starting:
Rotation:
Fuel:
Technical Data Generator:
Generator Manufacturer:
Endress
Gen Set:
PRO18L G/4 60KVA
Gen No.:
auf Anfrage
Gen Power:
60 kVA
Voltage:
400 / 231 Volt
Power Factor:
cos. - phi 0,8
Rotation:
1500 rpm
Control Unit:
Setup:
manual start
Functions:
Keystart
Switch:
gen switch 4 pole
Delivery:
set up
Width ca. mm:
Height ca. mm:
Depth ca. mm:
Fuel Tank:
Setup:
Width ca. mm:
Height ca. mm:
Depth ca. mm:
Capacity / Litre:
110
Dimensions of unit:
Width ca. mm:
1.100
Height ca. mm:
1.450
Length ca. mm:
2.350
Weigth ca. KG:
1.255
Usage:
Stock No:
1400
State:
New
year of manufacture:
2023
time of delivery:
ex work
Operating Hours:
1
Location:
Verl - Germany
Price plus VAT in €:
on request:
Reserved:
nein / no
delivery contents:
New PTO generator 40 kVA - brushless with electronic voltage regulator AVR - synchronous - switchable between field and home operation (TN / IT network) with insulation monitoring in protection class IP 44 according to CE (2006/95 EG)TN network for feeding into a building according to VDE 0100-551 supplement 1 with 1h coded socket.

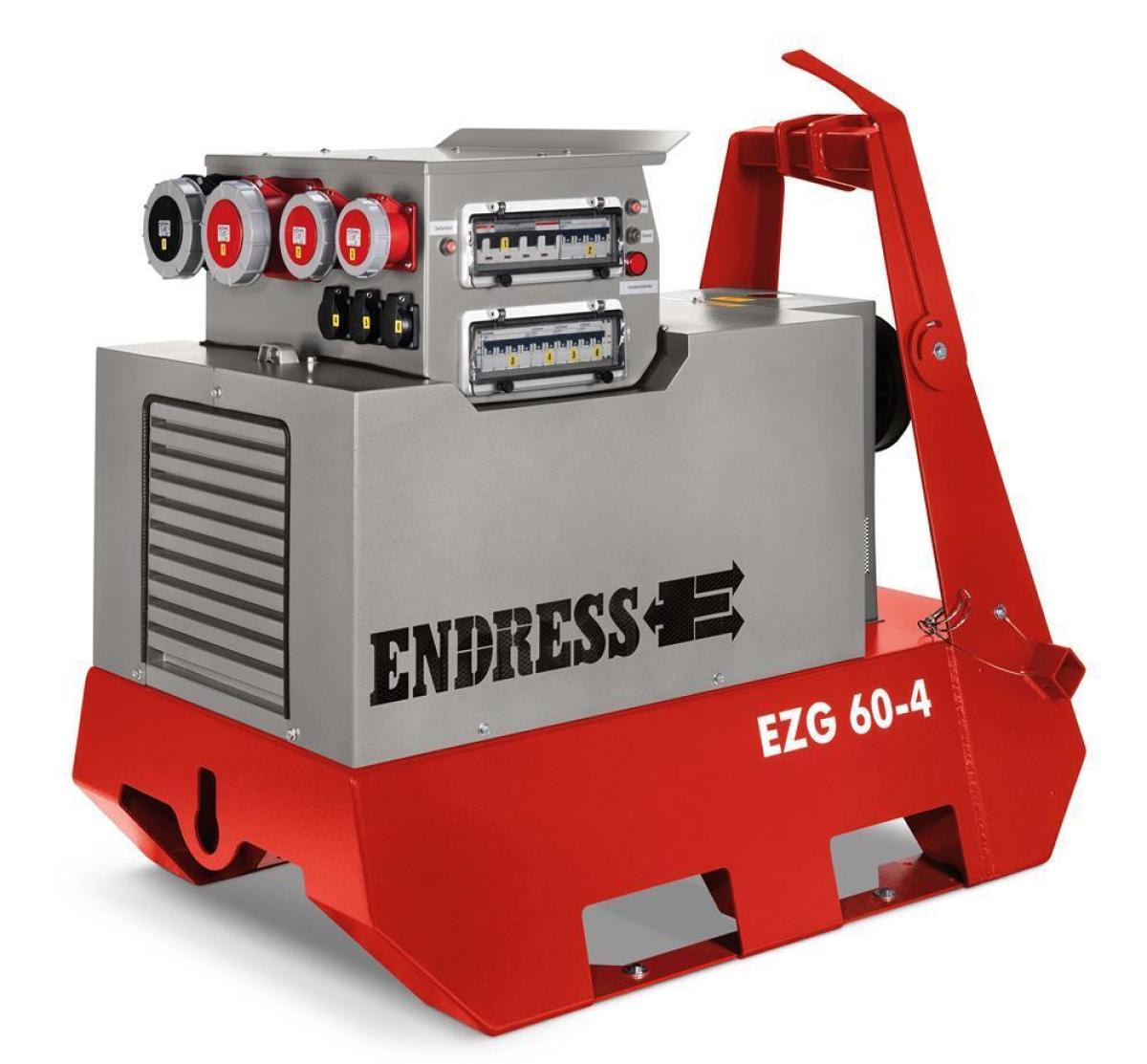

Sockets for field operation – IT network with insulation monitoring
230 volt Schuko / 16 amps yes
230 volts CEE 6 H/ 32 Amp. -/-
400 volts CEE 6 H /32 Amp. yes
400 volts CEE 6 H / 63 Amp. -/-
400 volts CEE 6 H / 125 Amp. yes
Sockets for home power supply – TN network
400 volts CEE 1 H / 63 Amp. -/-
400 volts CEE 1 H / 125 Amp. yes
Standard equipment / 2 year guarantee
Operating hours counter / digital yes
Voltage display / digital yes
Ammeter / digital yes
Frequency meter / digital yes
Insulation monitoring yes
Generator switch / 4 pole yes
Short-circuit current / 3.5 x I nominal yes
Voltage accuracy / +/- 1% yes
Insulation class H yes
Protection class IP 44 yes
Three-point hitch, yes
Gear oil filling / factory yes
Operating instructions / German yes
Drive shaft splash protection, yes
Voltage regulation / AVR 3 phase yes
Ready for operation / upon delivery yes
CE declaration and (2014/35/EU) yes
Fall-proof base frame, yes
Overload protection yes
Factory test run, yes
