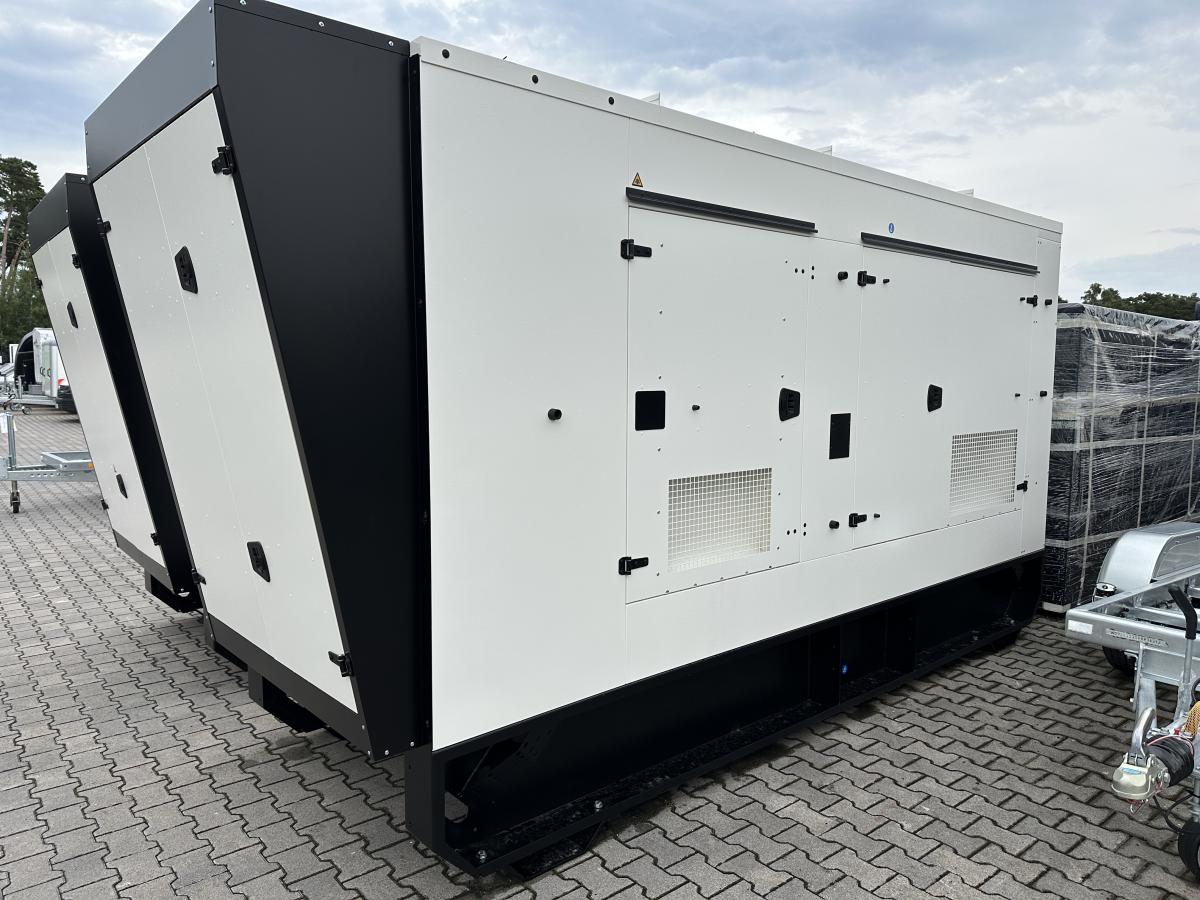

Emergency power generator as backup power supply Emergency power system 500 kVA with Volvo Penta engine and IG 200 control
Stock No.
1362
1362
Completion:
Generating Set:
stationary
Gen Set:
silent Set

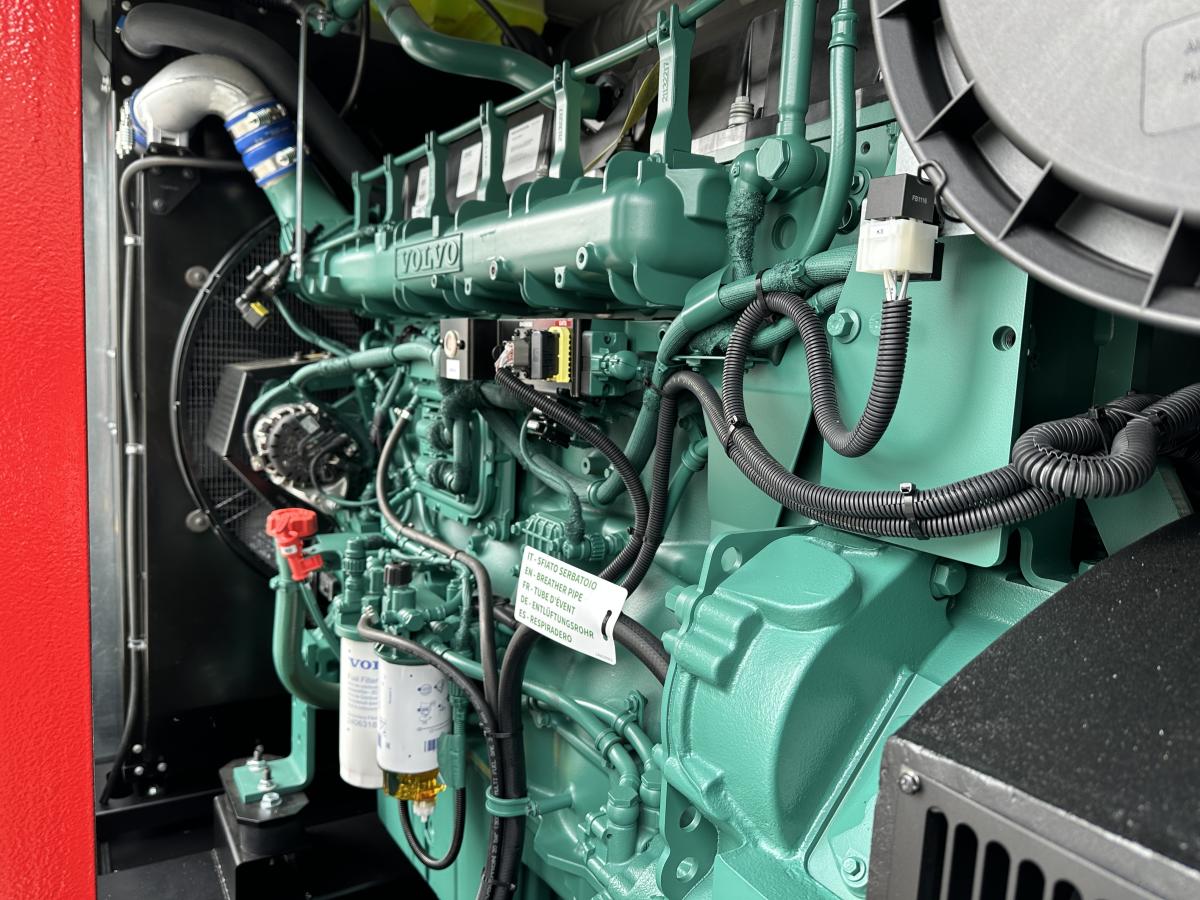

Technical Data Engine:
Engine Manufacturer:
Volvo Penta
Engine Type:
TAD 1641 GE
Engine No.:
in Produktion
Engine Power:
430 KW

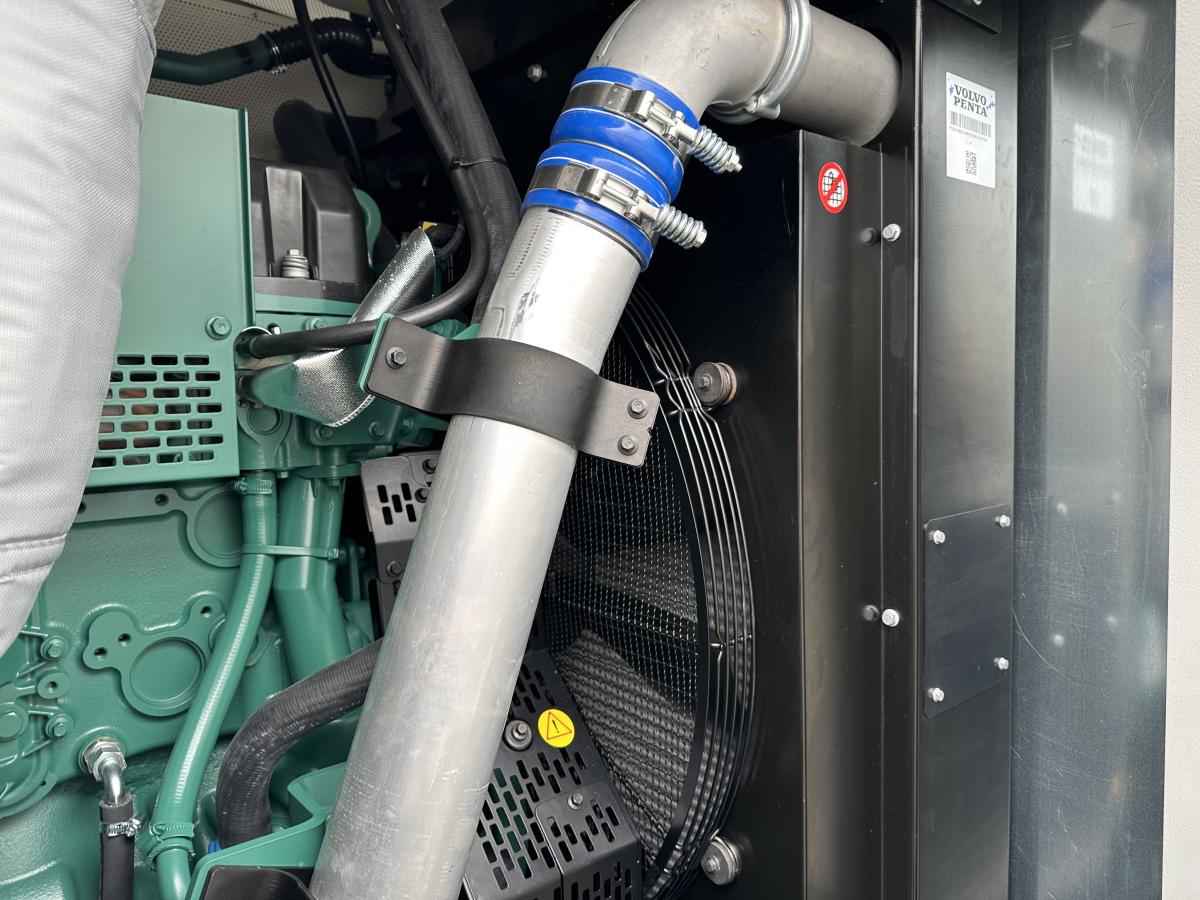

Cooling:
water-cooled
Starting:
electrical 24 V DC
Rotation:
1500 rpm
Fuel:
heating oil EN 590

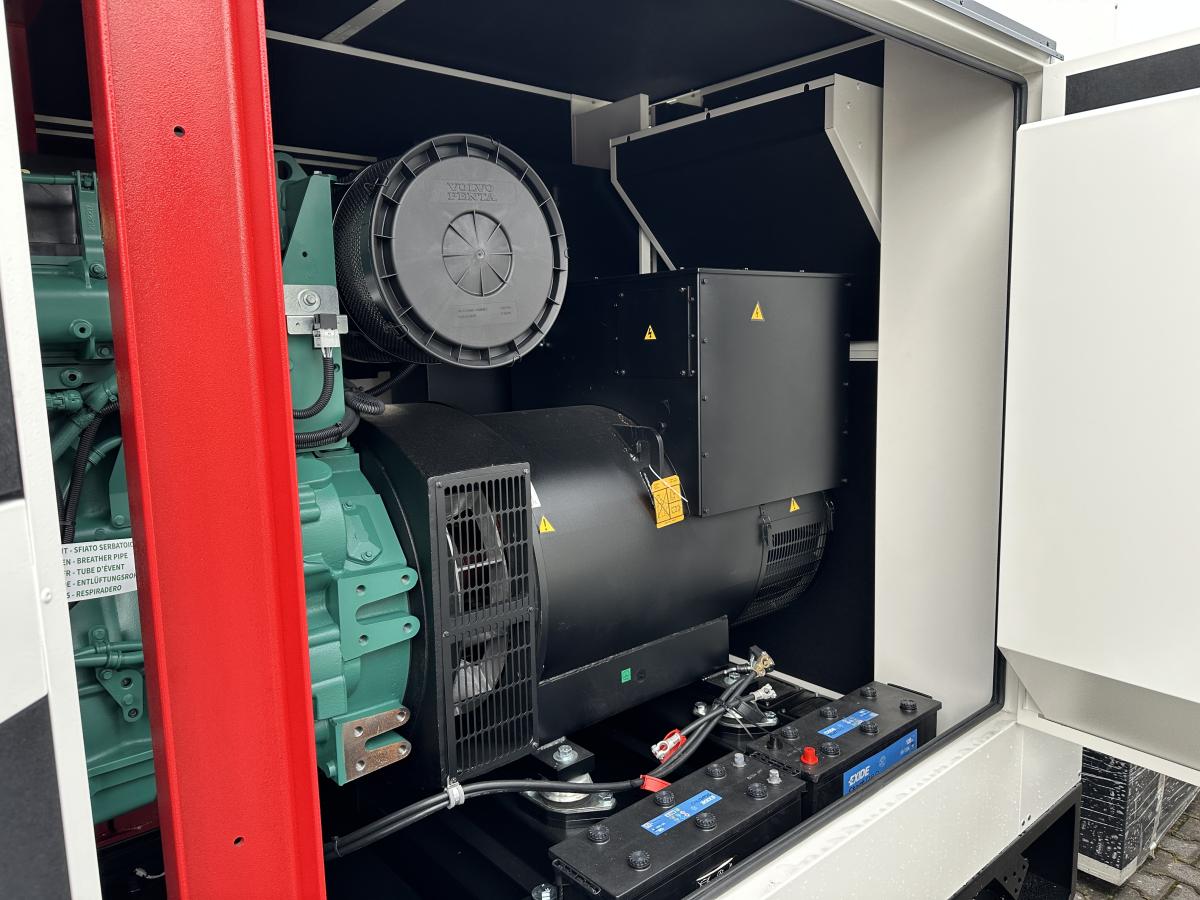

Technical Data Generator:
Generator Manufacturer:
Stamford AvK
Gen Set:
HCI 544 C
Gen No.:
in Produktion
Gen Power:
500 kVA
Voltage:
400 / 231 Volt
Power Factor:
cos. - phi 0,8
Rotation:
1500 rpm

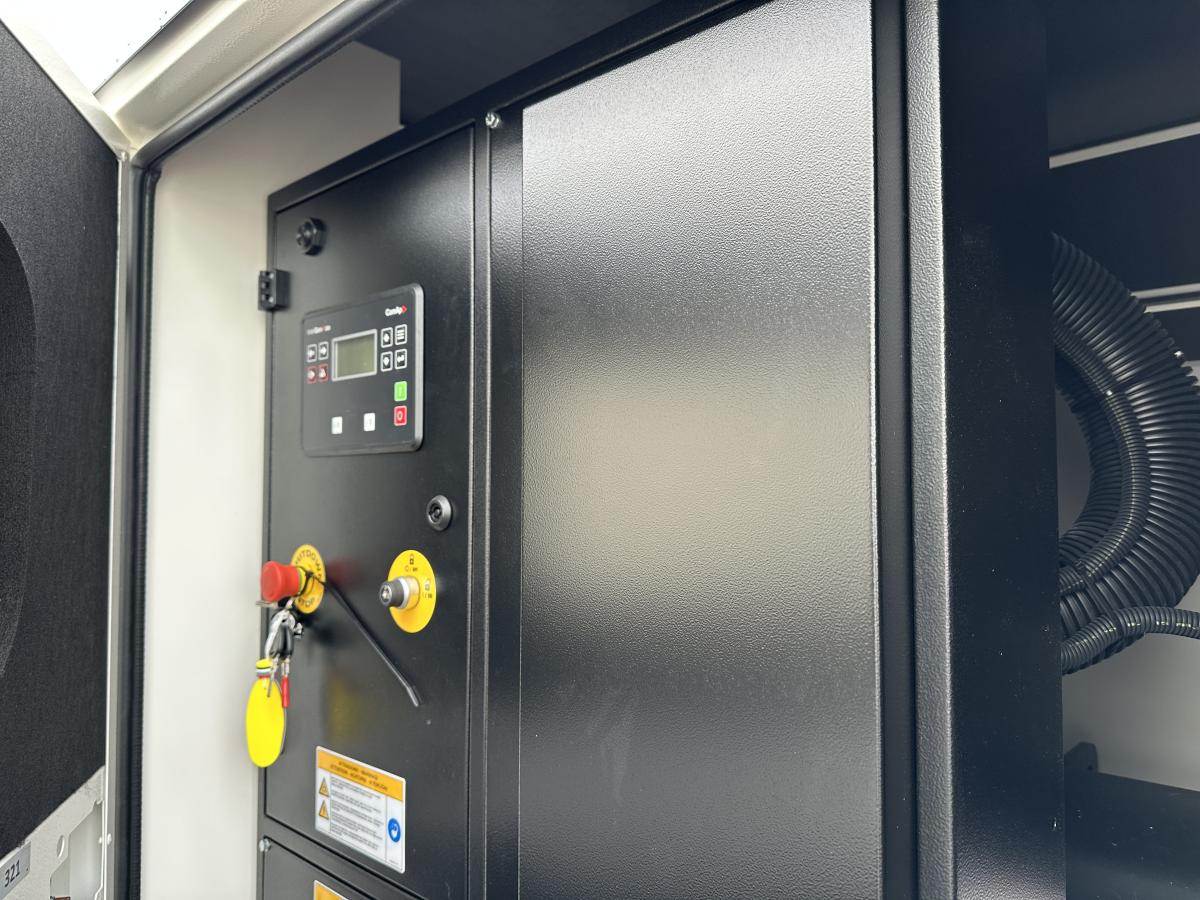

Control Unit:
Setup:
automatic start
Functions:
parallel operation
Switch:
gen switch 4 pole
Delivery:
set up
Width ca. mm:
Height ca. mm:
Depth ca. mm:

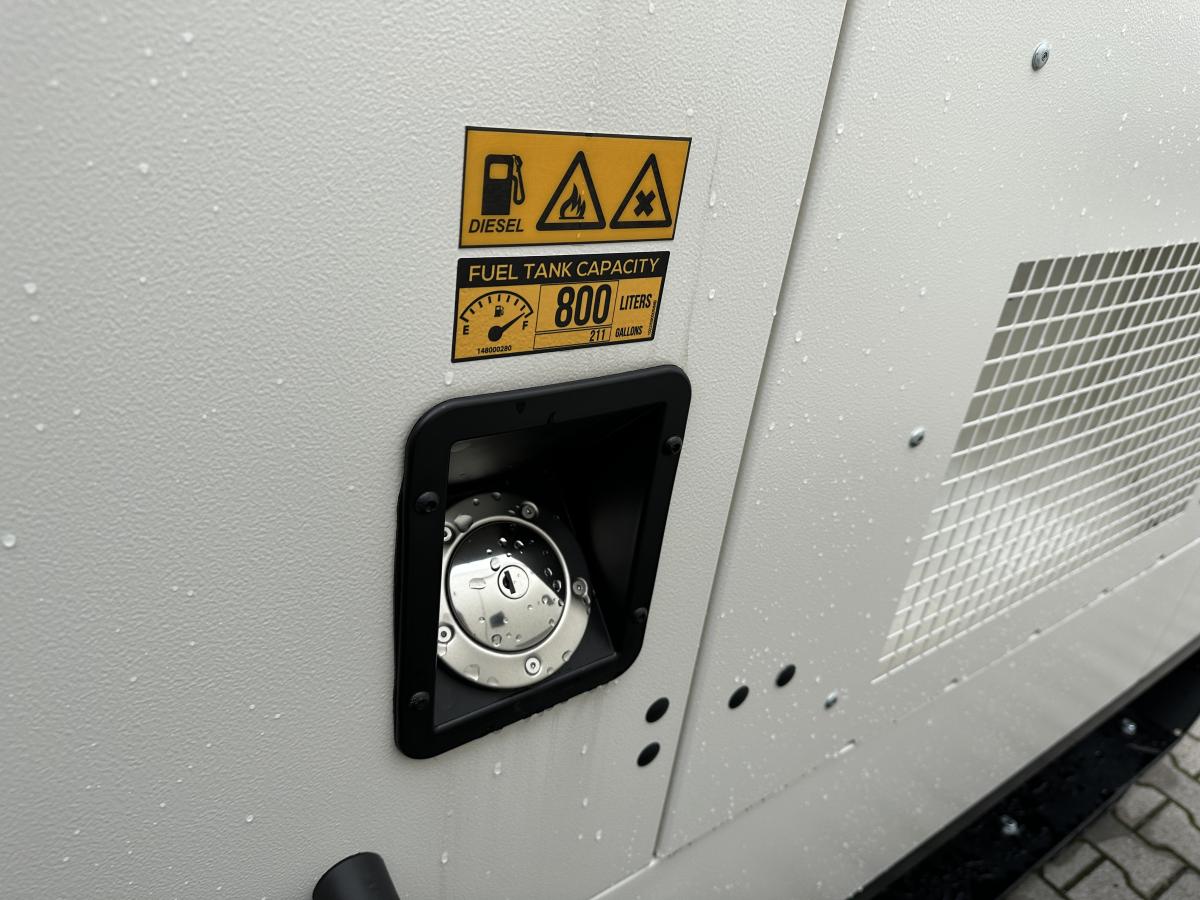

Fuel Tank:
Setup:
baseframe fuel tank with bassin
Width ca. mm:
Height ca. mm:
Depth ca. mm:
Capacity / Litre:
800
Dimensions of unit:
Width ca. mm:
1.600
Height ca. mm:
2.460
Length ca. mm:
4.310
Weigth ca. KG:
5.800
Usage:
Stock No:
1362
State:
New
year of manufacture:
2023
time of delivery:
ex work
Operating Hours:
neu
Location:
Verl - Germany
Price plus VAT in €:
on request:
Reserved:
nein / no
delivery contents:
Sound-insulated emergency generator 70 db"A" (+/- 2.4) as the average of an all-round measurement at 7 measuring points. Seamless reverse synchronization control Overlap synchronization. Internal day tank in the base frame with drip pan.Fuel consumption according to Volvo data sheet:
Consumption at 25% approx. 28.00 liters / hour | sufficient for approx. 28.5 hours
Consumption at 50% approx. 51.50 liters / hour | sufficient for approx. 15.5 hours
Consumption at 75% approx. 76.20 liters / hour | sufficient for approx. 10.4 hours
Consumption at 100% approx. 103.10 liters / hour | enough for about 8 hours
