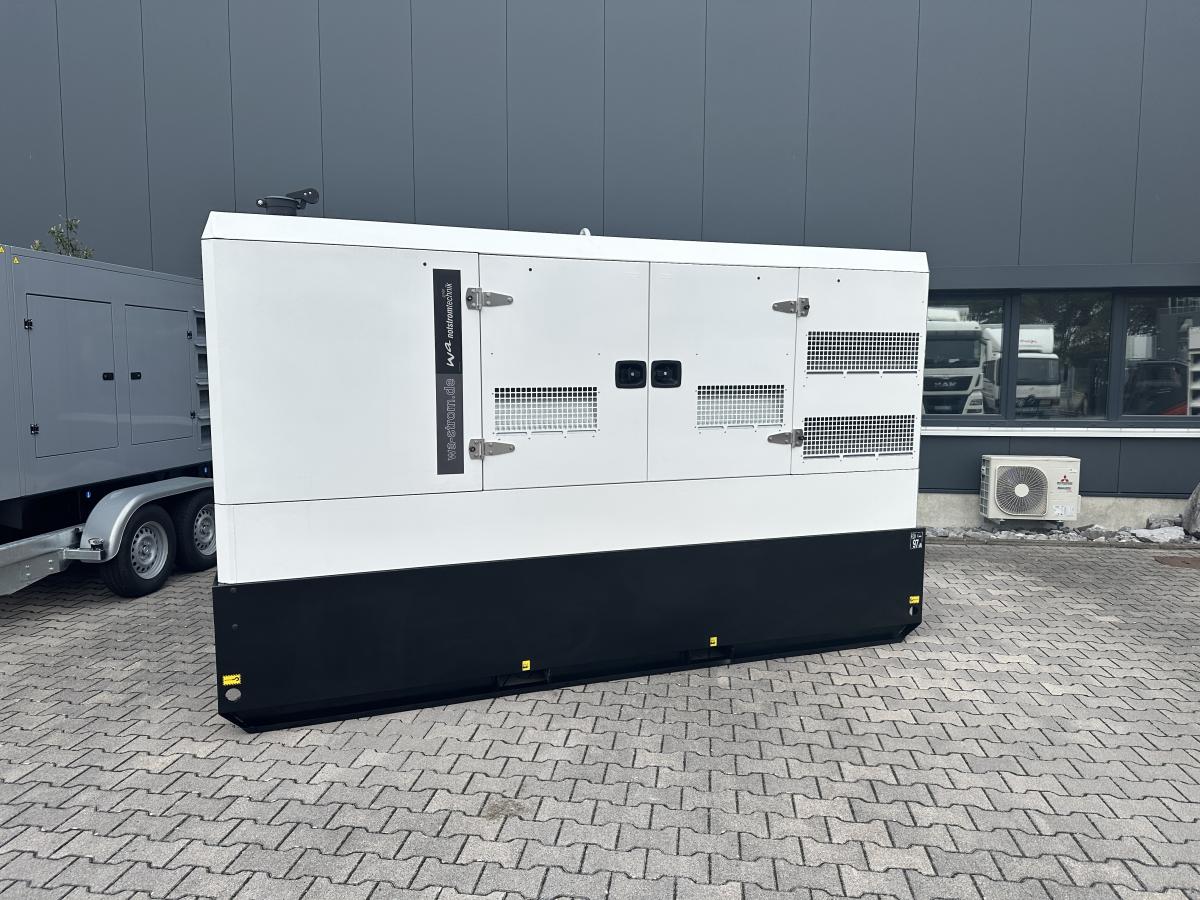

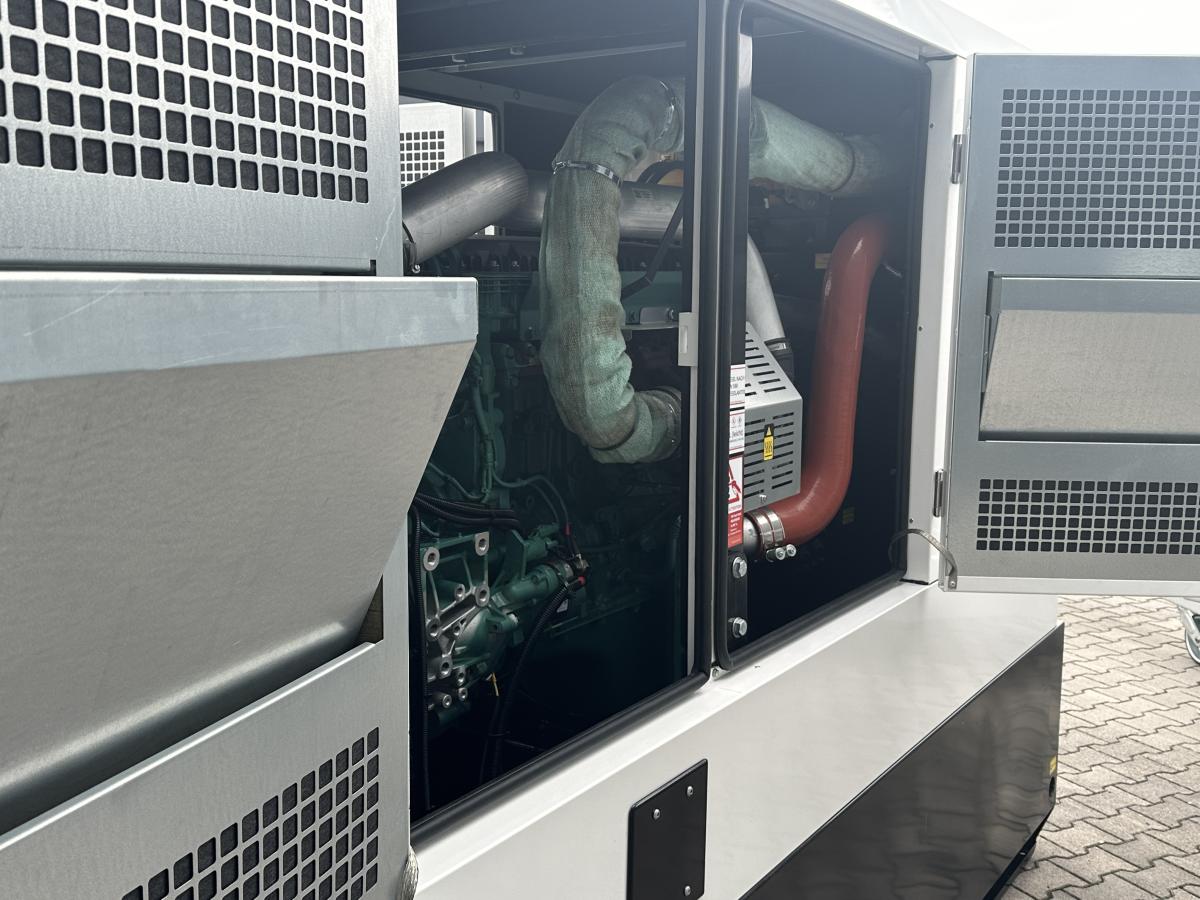

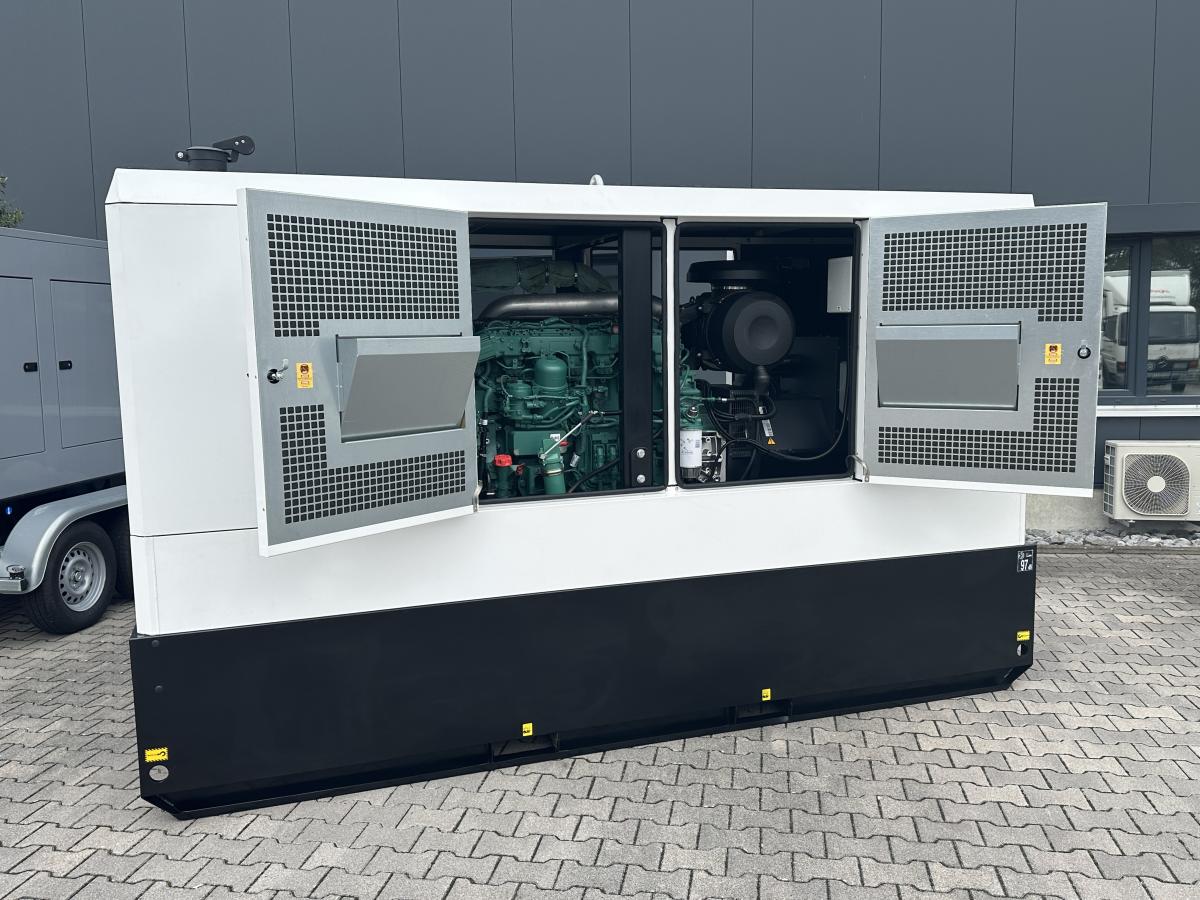

Emergency power generator as a power replacement system, soundproofed with Volvo engine TAD 841 GE 250 kVA and ComAp IG4 200 control
Stock No.
1390
1390
Completion:
Generating Set:
stationary
Gen Set:
silent Set
Technical Data Engine:
Engine Manufacturer:
Volvo

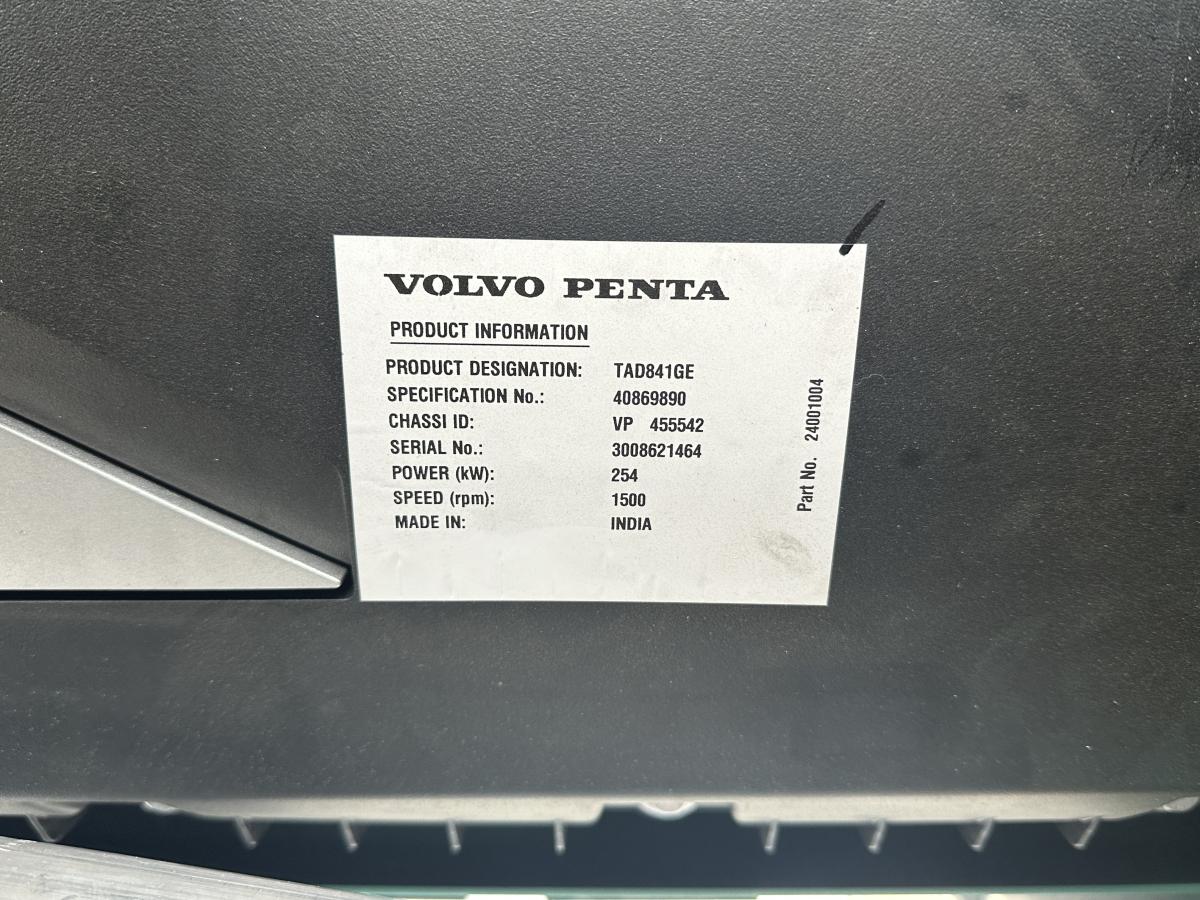

Engine Type:
TAD841GE
Engine No.:
3008621464
Engine Power:
254 KW
Cooling:
water-cooled
Starting:
electrical 24 V DC
Rotation:
1500 rpm
Fuel:
heating oil EN 590
Technical Data Generator:

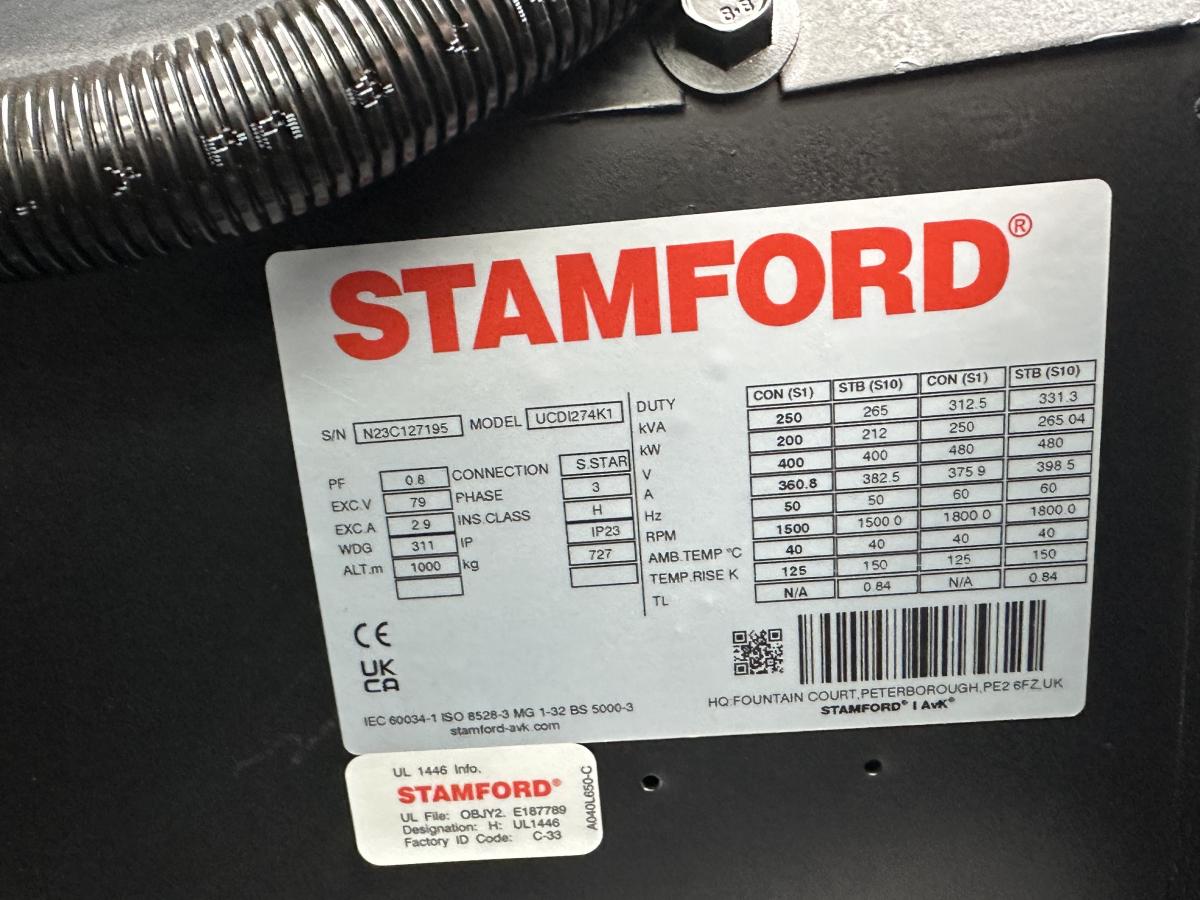

Generator Manufacturer:
Stamford
Gen Set:
UCDI 274 K1
Gen No.:
N23C127195
Gen Power:
250 kVA
Voltage:
400 / 231 Volt
Power Factor:
cos. - phi 0,8
Rotation:
1500 rpm
Control Unit:
Setup:
automatic start
Functions:
parallel operation overlapp
Switch:
gen switch 4 pole
Delivery:
set up
Width ca. mm:
Height ca. mm:
Depth ca. mm:
Fuel Tank:
Setup:
Baseframe fuel Tank with Bassin
Width ca. mm:
Height ca. mm:
Depth ca. mm:
Capacity / Litre:
360
Dimensions of unit:
Width ca. mm:
1.200 mm
Height ca. mm:
2.291 mm
Length ca. mm:
3.640 mm
Weigth ca. KG:
3.320
Usage:
Stock No:
1390
State:
new
year of manufacture:
2023
time of delivery:
ex work
Operating Hours:
0
Location:
Verl - Germany
Price plus VAT in €:
on request:
Reserved:
nein / no
delivery contents:

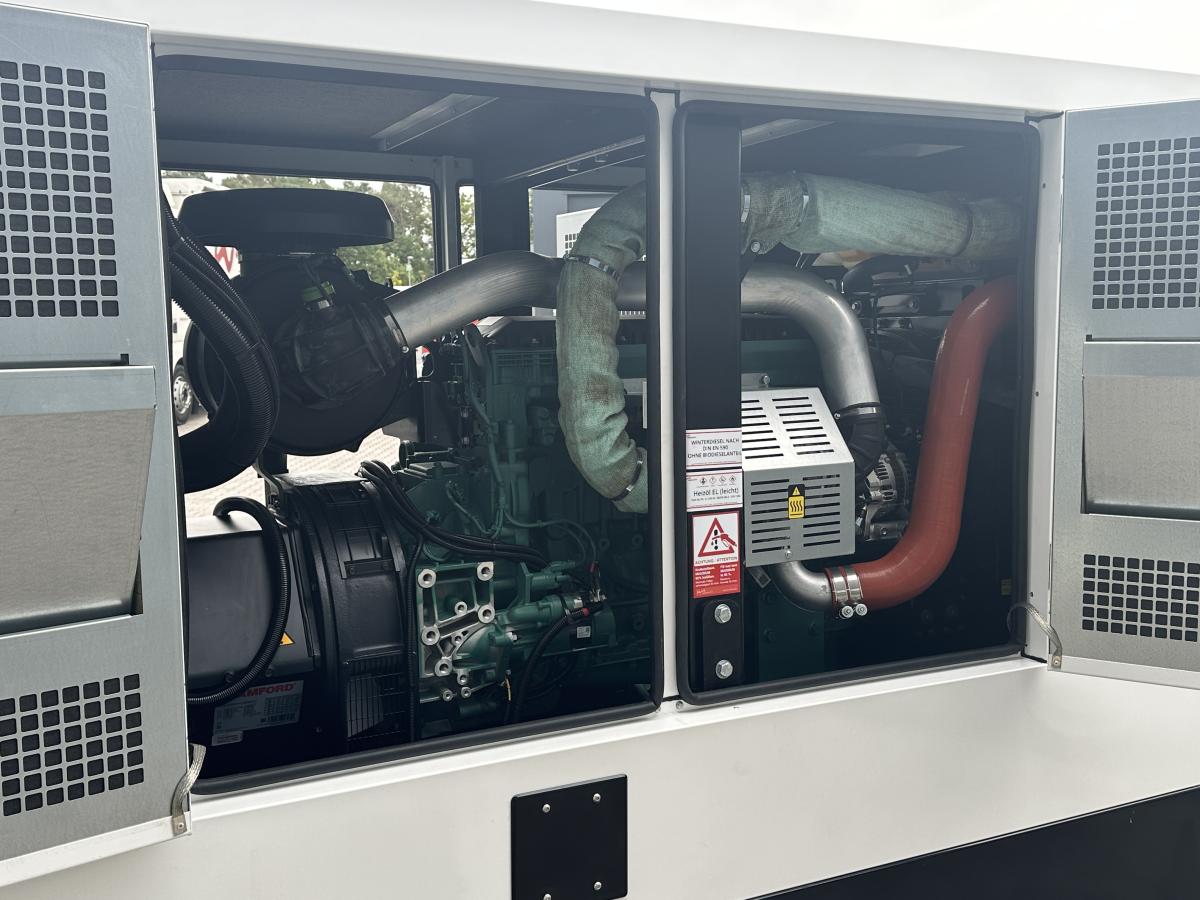

As an independent manufacturer, WA Notstromtechnik GmbH offers flexible and reliable industrial power generation units. Easy to integrate into existing electrical systems, fuel-saving with high load transfers, to name just a few advantages. Each system is equipped with a collecting tray as standard in accordance with the requirements of the AwSV.Emergency generator 250 kVA (PRP) as a fully automatic emergency power system with a robust Volvo Penta engine. Soundproofed with approx. 72 db"A" at 7 meters (+/- 2.4) measured with an all-round measurement at 7 meters at 7 measuring points

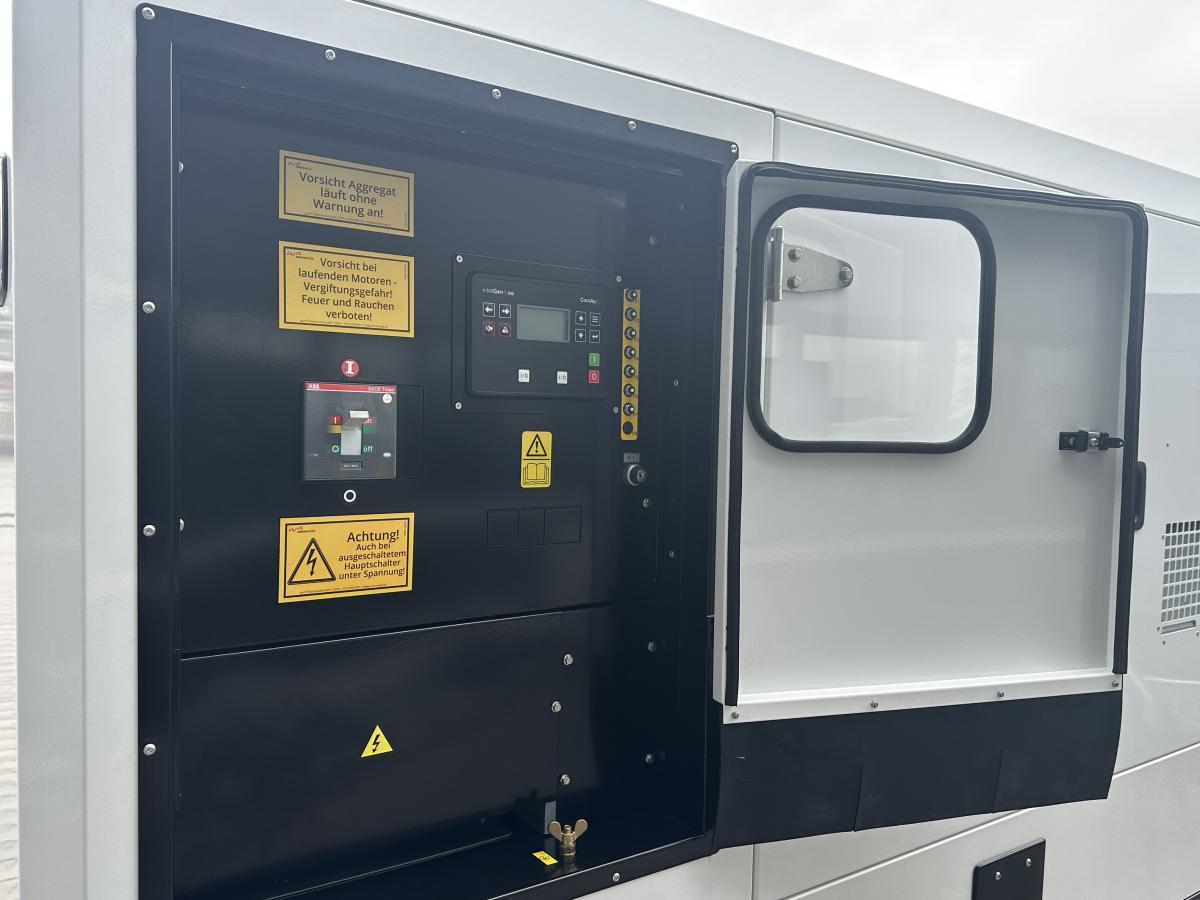

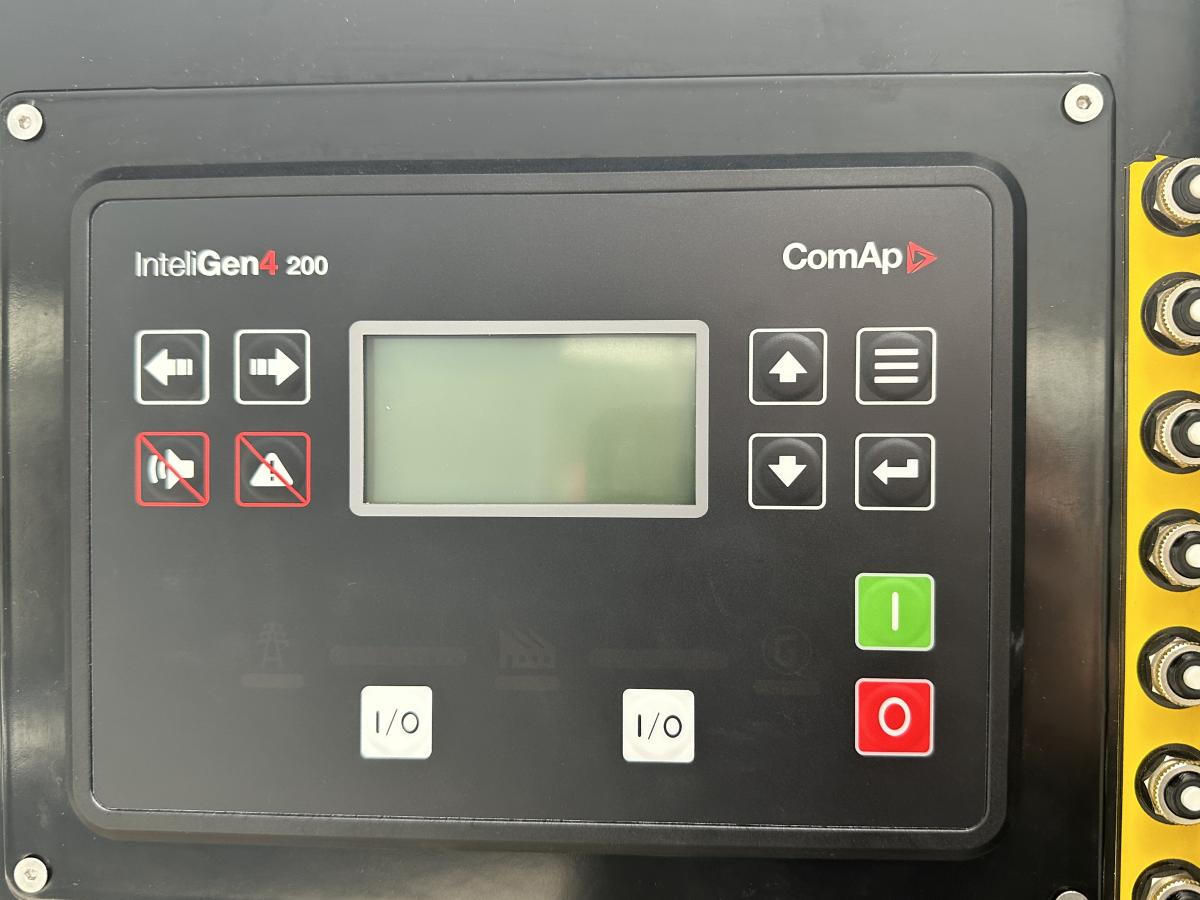

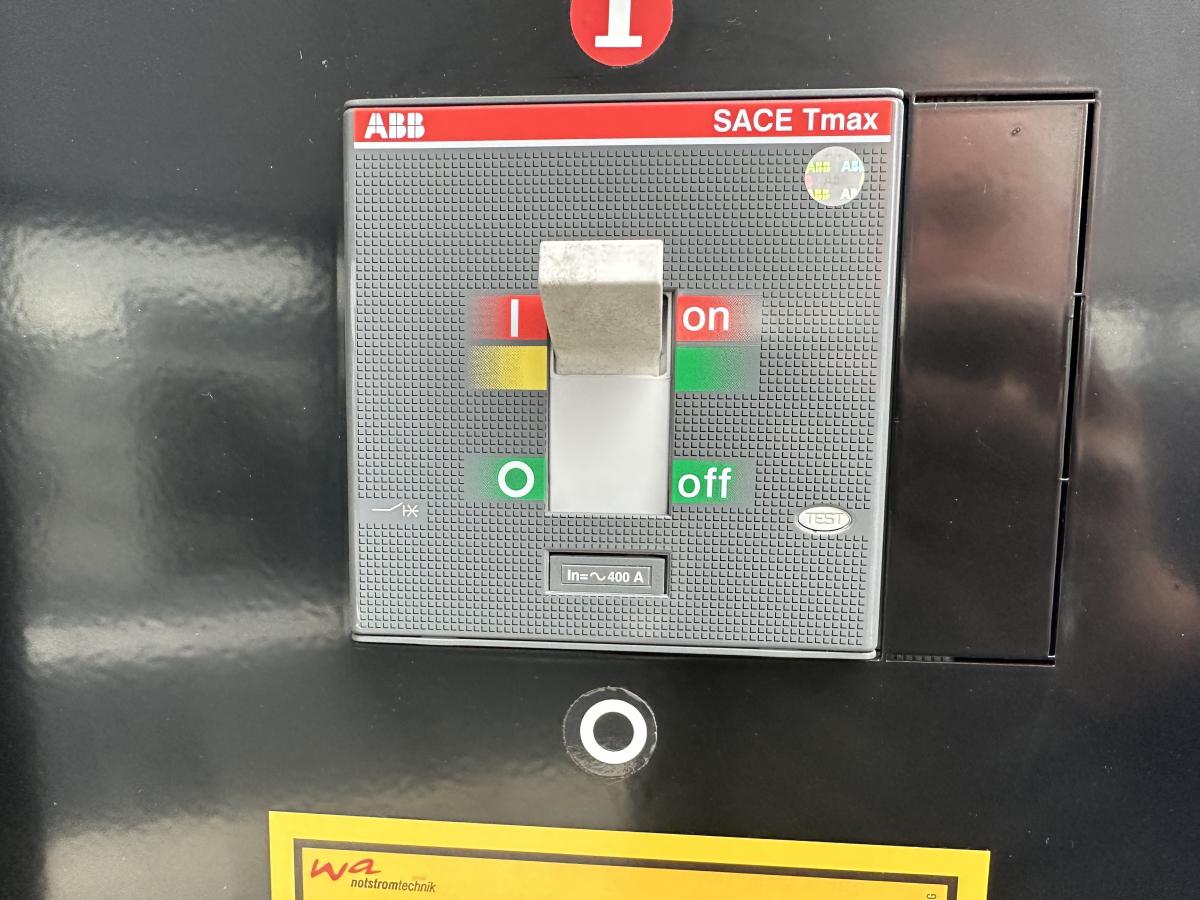

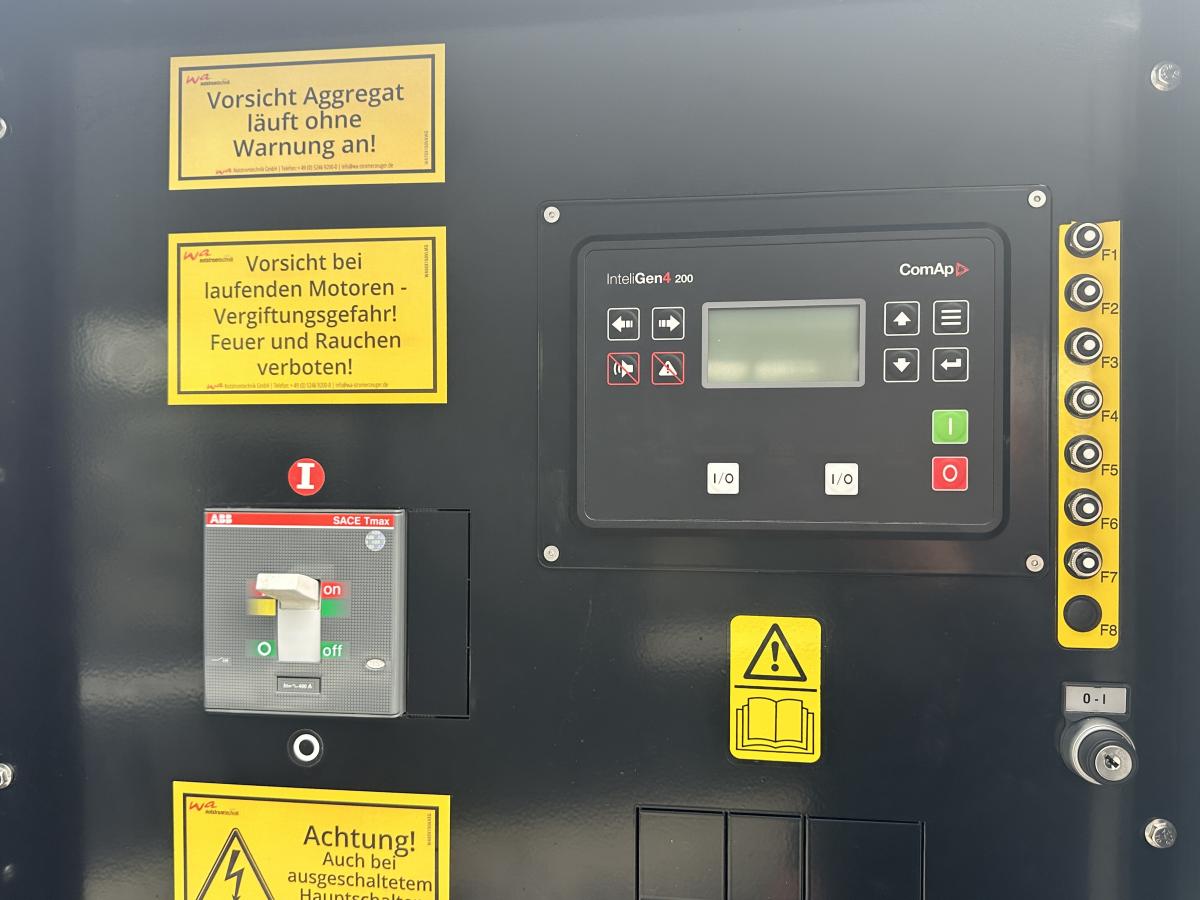

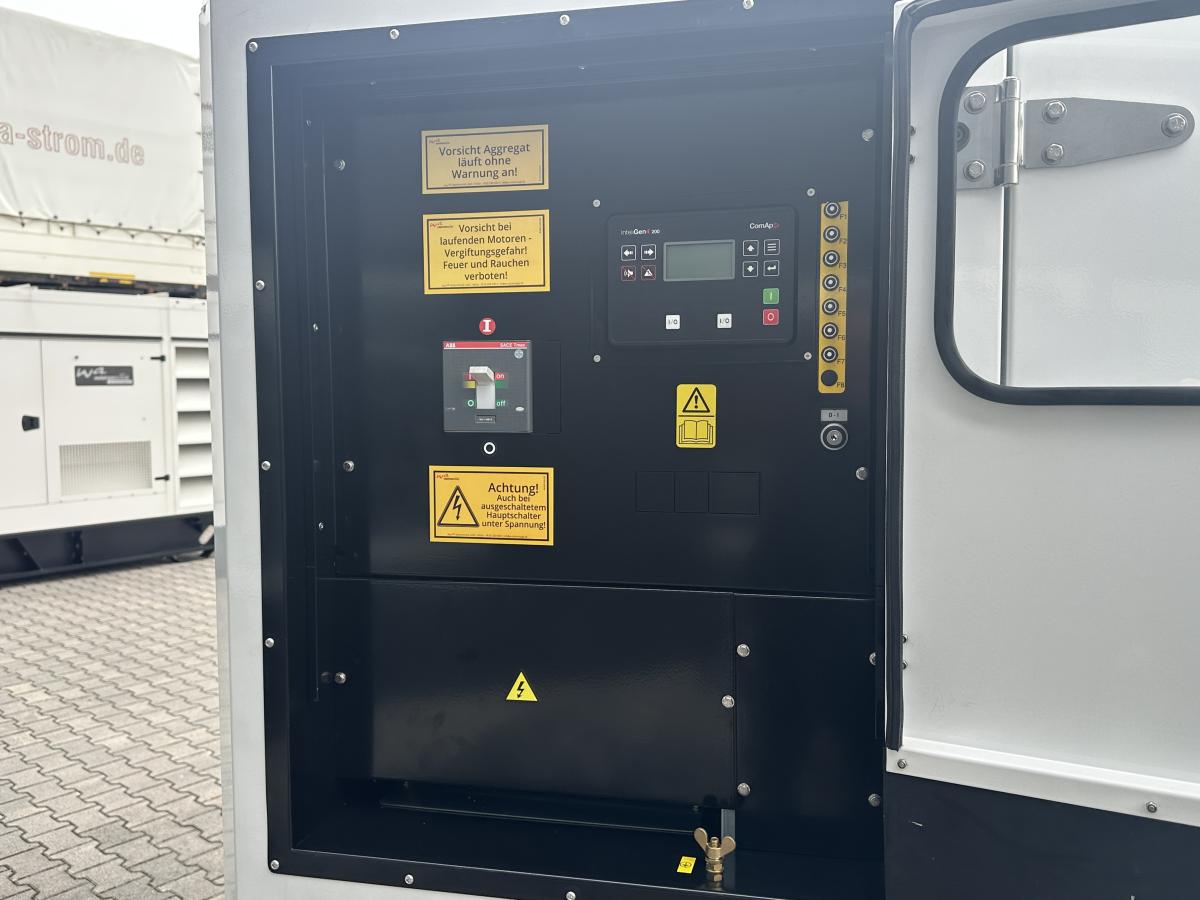

Built-in internal emergency power switchgear with manual 4-pole generator switch 400 amps behind a door with viewing window. Automatic start with ComAp InteliGen4 200 control
Function: In the event of a power failure, the start command is passed to the diesel generator. When the rated speed and rated voltage are reached, the generator switch (e.g. in the low-voltage main distribution) is switched on. When the mains returns, the automatic system monitors the mains voltage. When this is stable again, the switch back to mains operation takes place WITHOUT INTERRUPTION. The diesel generator is stopped after the cooling time and waits in automatic mode for the next power failure.
The switchover from mains to generator operation takes place on existing motor-operated circuit breakers (e.g. in the NSHV). The advantage of this variant; Only one line is needed for the load cable.
Further features included as standard:

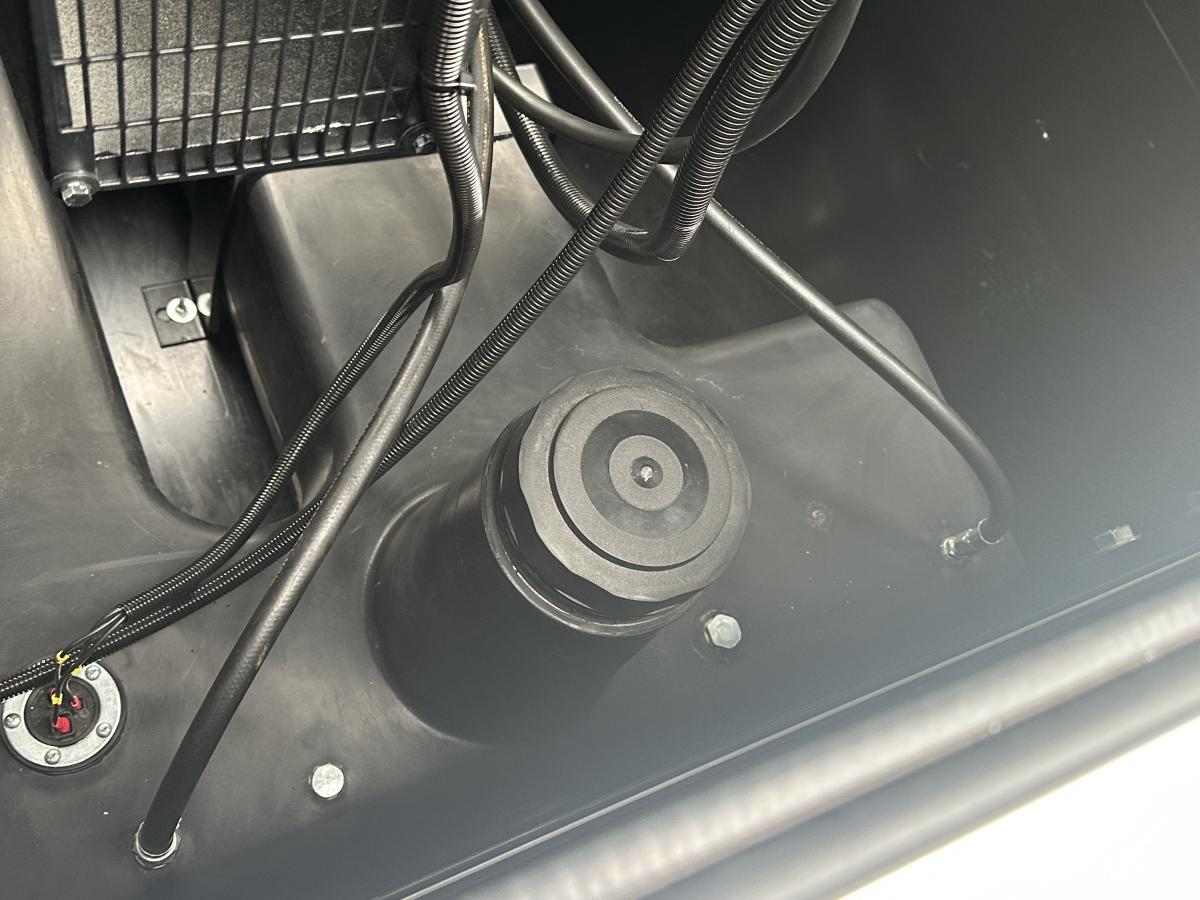

Tank capacity 360 liters
Oil collecting pan in the base frame according to AwSV
Electronic speed controller for high load applications
Stable base frame with forklift pockets

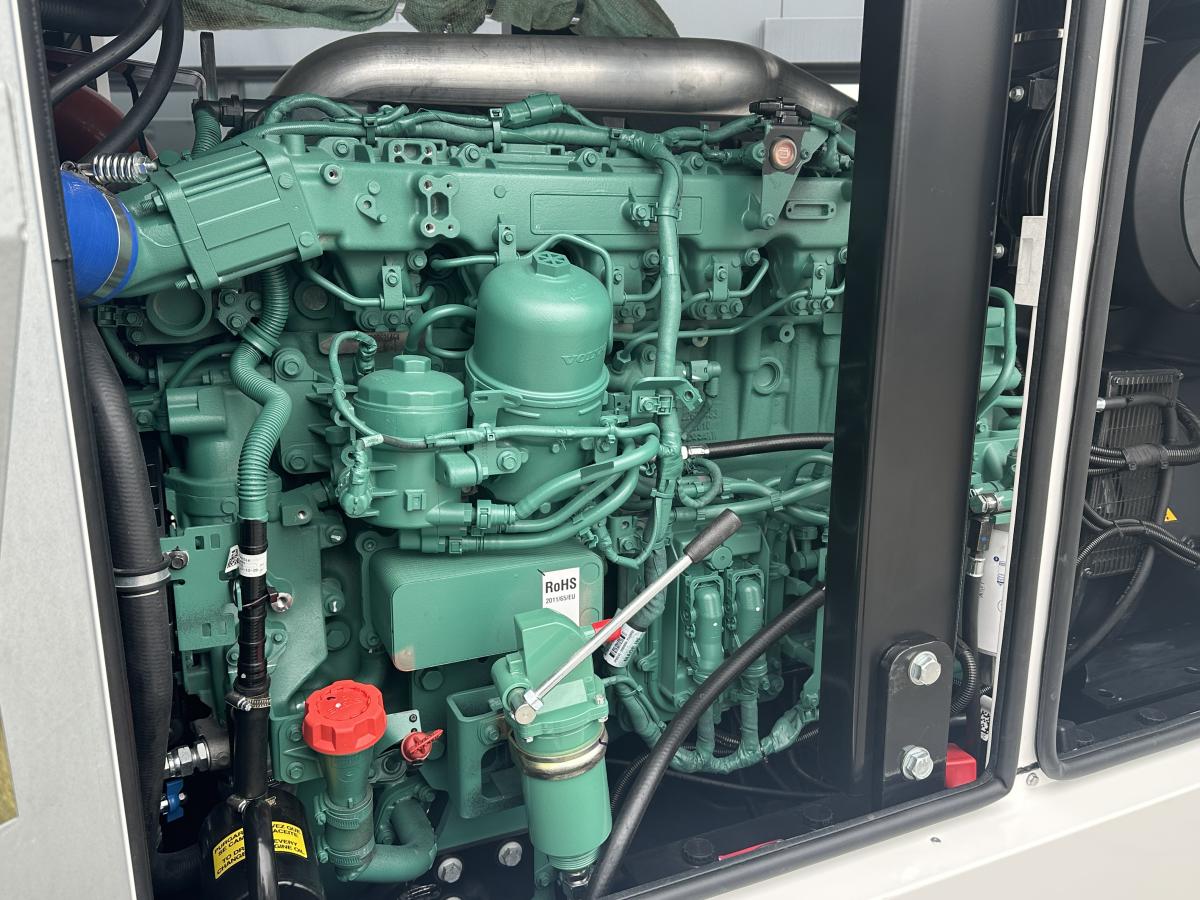

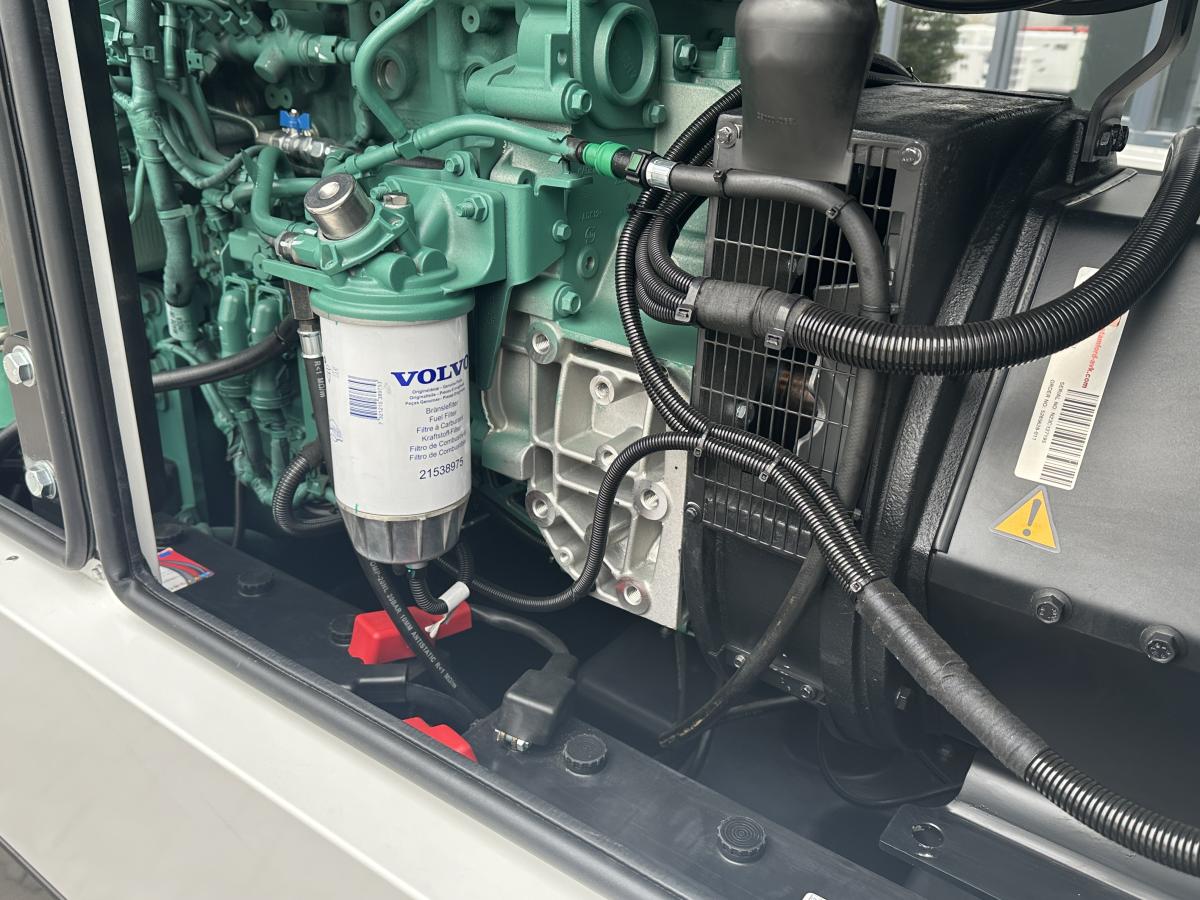

Additional engine data TAD 841 GE:
Characterized by impressive performance and fuel economy, all Volvo Penta engines are based on a common platform, which translates into a host of benefits, maximizing your operational productivity, always with a strong focus on the future of our industry.
Control quality G 3 according to ISO 8528-5
Fuel consumption 28 liters / hour at 50% load
Fuel consumption 41 liters / hour at 75% load
Fuel consumption 55 liters / hour at 100% load
Emissions quality animal max.: EU STAGE 2
Lubrication system:
Engine oil content: 27 liters
Lubricating oil consumption: 0.06% of fuel consumption
Air volumes:
Cooling air requirement: 19,400 m³/hour
Combustion air requirement: 900 m³/hour
Exhaust system:
Exhaust gas temperature: 478 °C
Exhaust gas back pressure max.: 80 mbar
Exhaust gas volume: 2,604 m³/hour
Additional generator data UCIAD 841 GE:
Generator efficiency: 92.7% (100% PRP)
AVR voltage regulator: SX 460
Insulation class: H
Xd (%) 255
X`d (%) 12
X8
The emergency power generator as a backup system is ready for operation and immediately available from the Verl warehouse.
