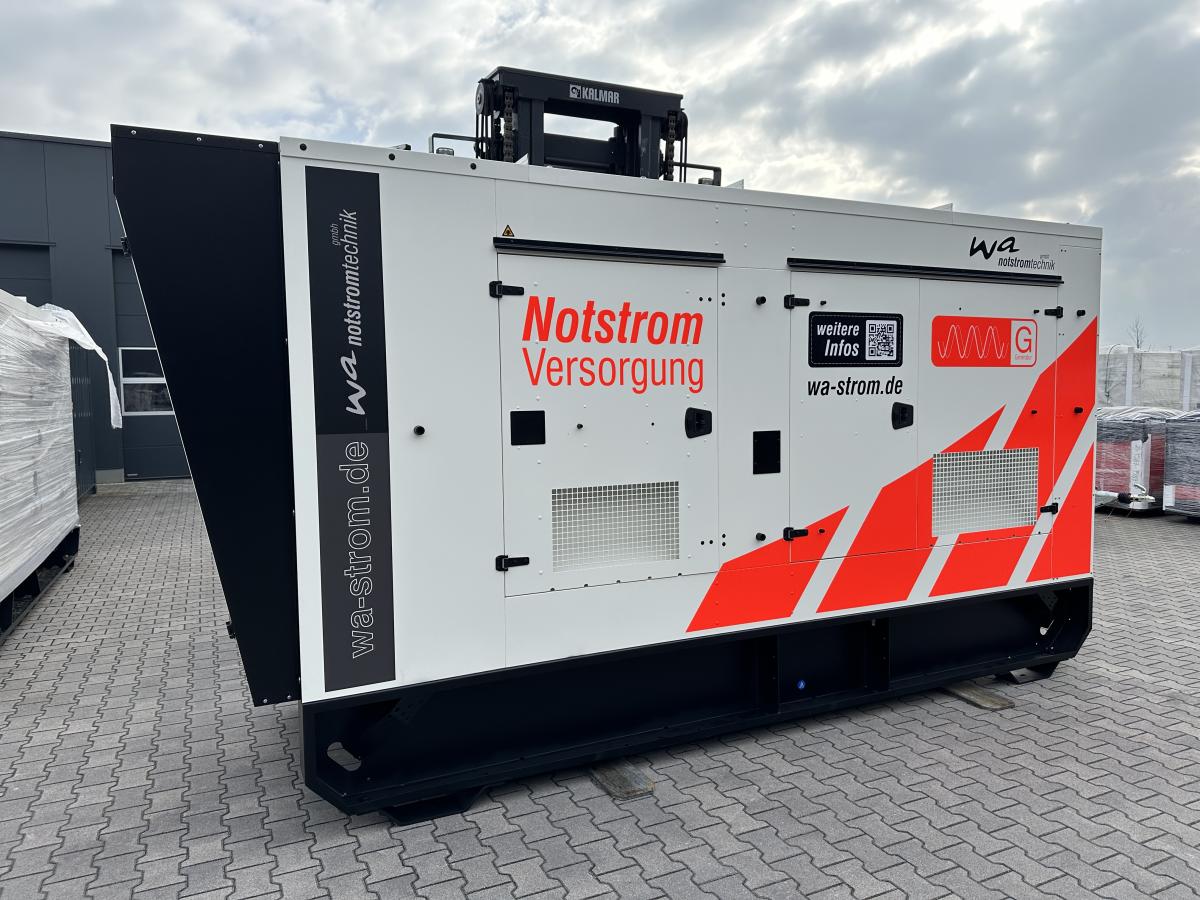

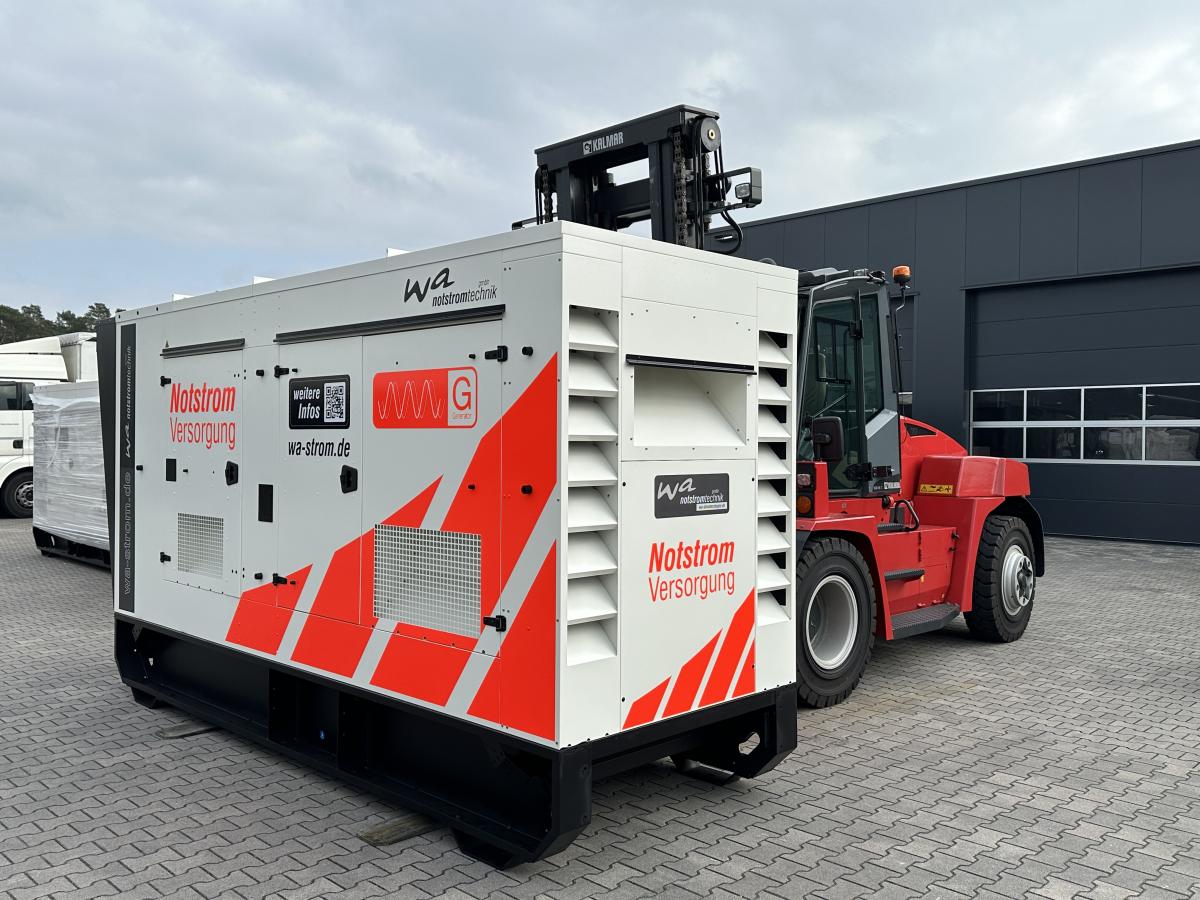

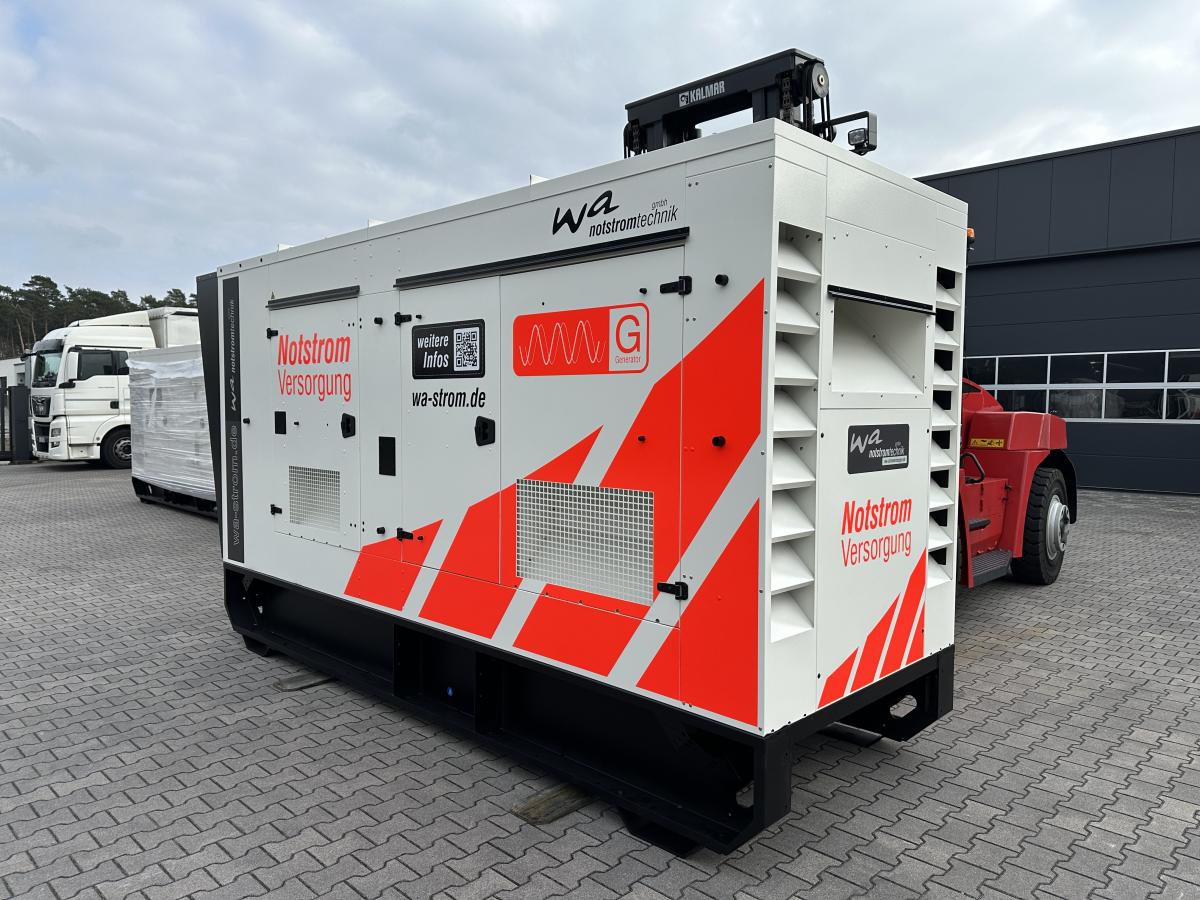

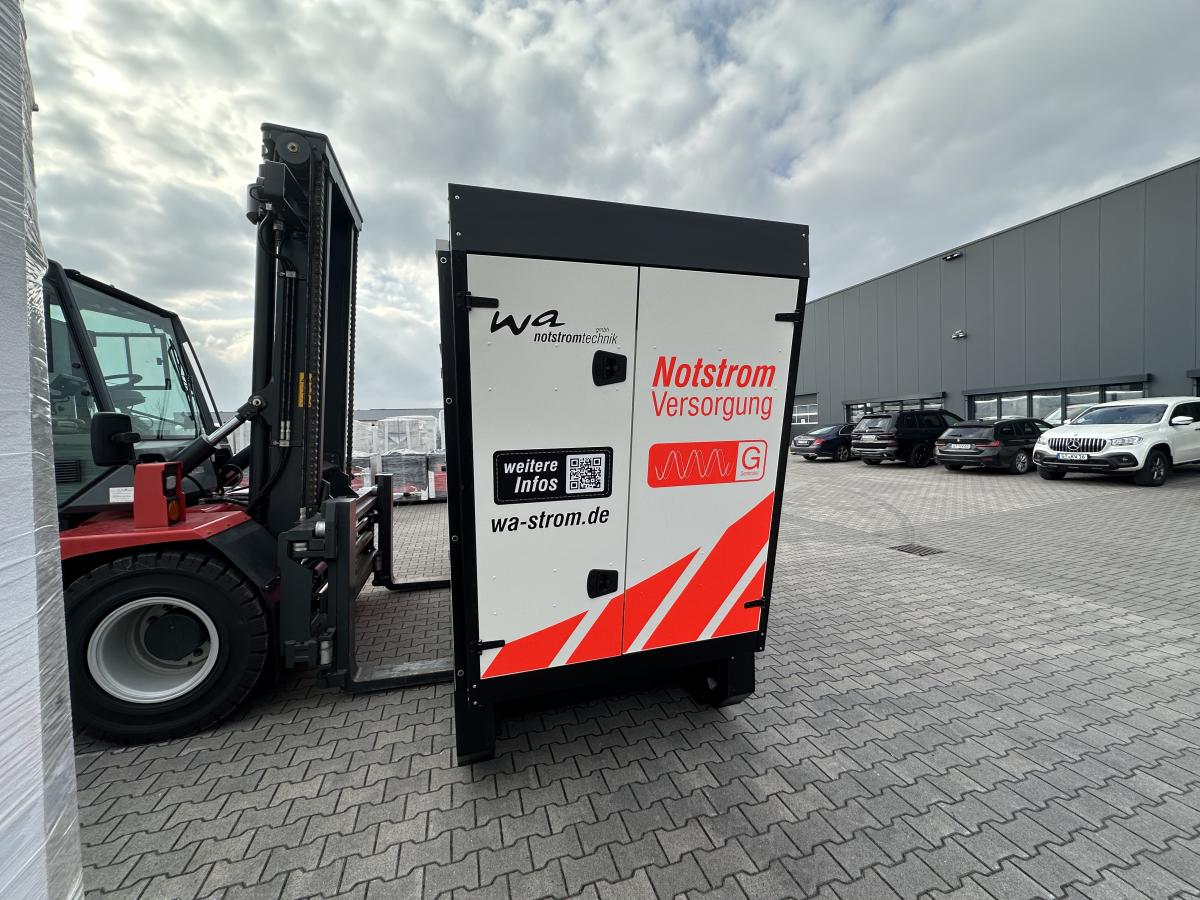

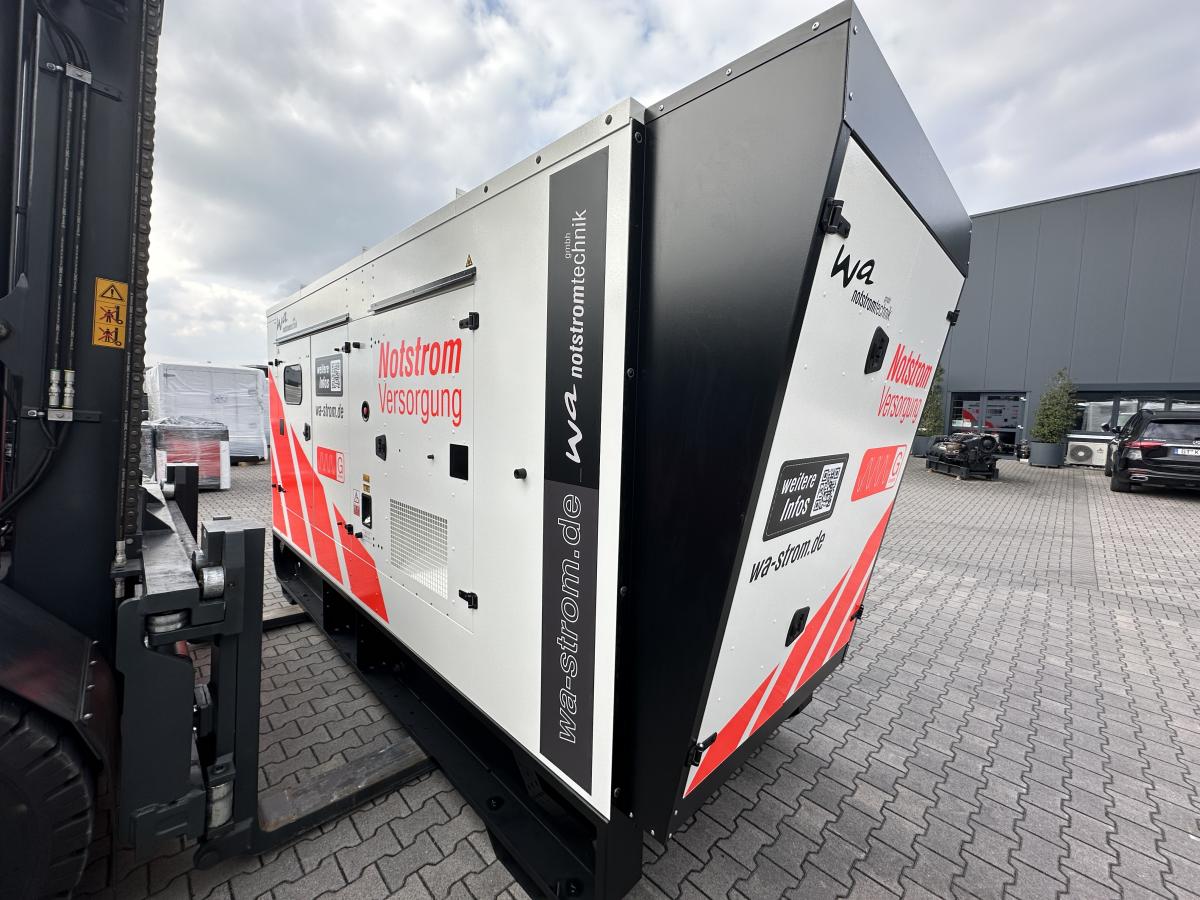

Emergency generator as backup generator 600 kVA with Volvo engine TAD 1642 GE in RAL 9010 tank 800 liters
Stock No.
1295
1295
Completion:
Generating Set:
stationary
Gen Set:
silent Set

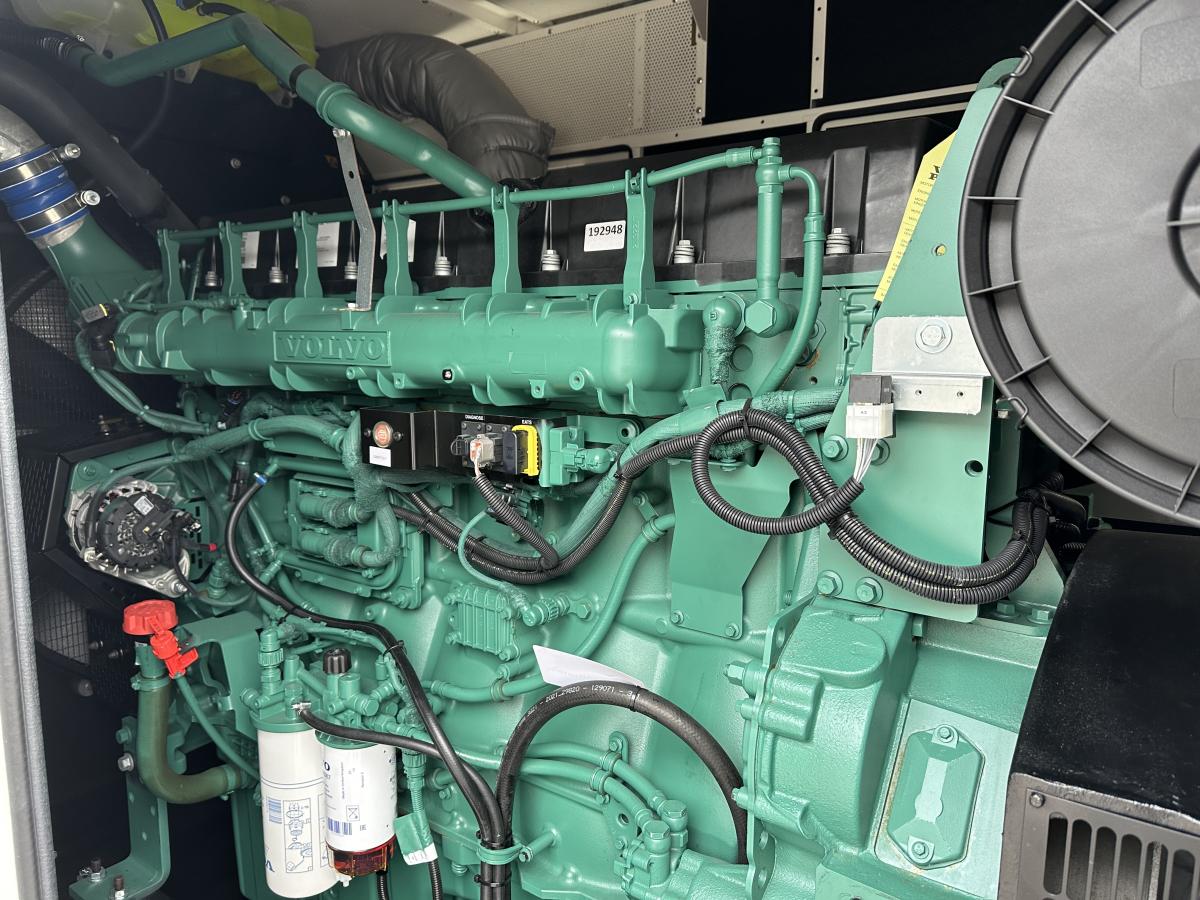

Technical Data Engine:
Engine Manufacturer:
Volvo Penta
Engine Type:
TAD 1642 GE-B
Engine No.:
201660329
Engine Power:
565 KW
Cooling:
water-cooled
Starting:
electrical 24 V DC
Rotation:
1500 rpm
Fuel:
heating oil EN 590
Technical Data Generator:

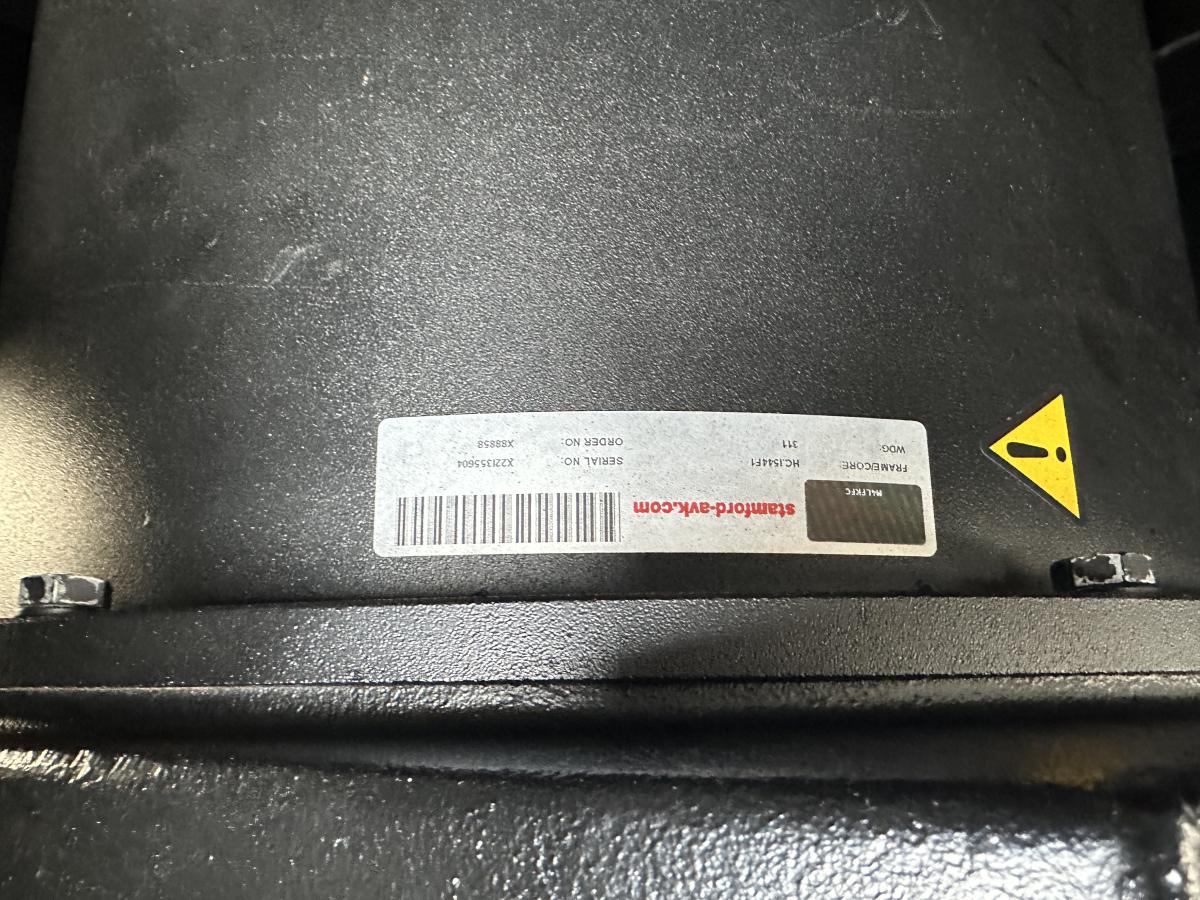

Generator Manufacturer:
Stamford AvK
Gen Set:
HCI 544 F1
Gen No.:
X221355604
Gen Power:
670 kVA
Voltage:
400 / 231 Volt
Power Factor:
cos. - phi 0,8
Rotation:
1500 rpm
Control Unit:
Setup:
manual start
Functions:
emergency power
Switch:
gen switch 4 pole
Delivery:
set up
Width ca. mm:
Height ca. mm:
Depth ca. mm:
Fuel Tank:
Setup:
Width ca. mm:
Height ca. mm:
Depth ca. mm:
Capacity / Litre:
800
Dimensions of unit:
Width ca. mm:
1.700
Height ca. mm:
2.460
Length ca. mm:
4.810
Weigth ca. KG:
6.500
Usage:
Stock No:
1295
State:
new
year of manufacture:
2023
time of delivery:
ex work
Operating Hours:
1
Location:
Verl - Germany
Price plus VAT in €:
on request:
Reserved:
nein / no
delivery contents:
New, soundproofed (69 db"A" (+/- 2.4) as the mean value of an all-round measurement at 7 measuring points) emergency power generator as backup power supply, designed for continuous operation around the clock.The silencer hood is modular with generous doors for maintenance.

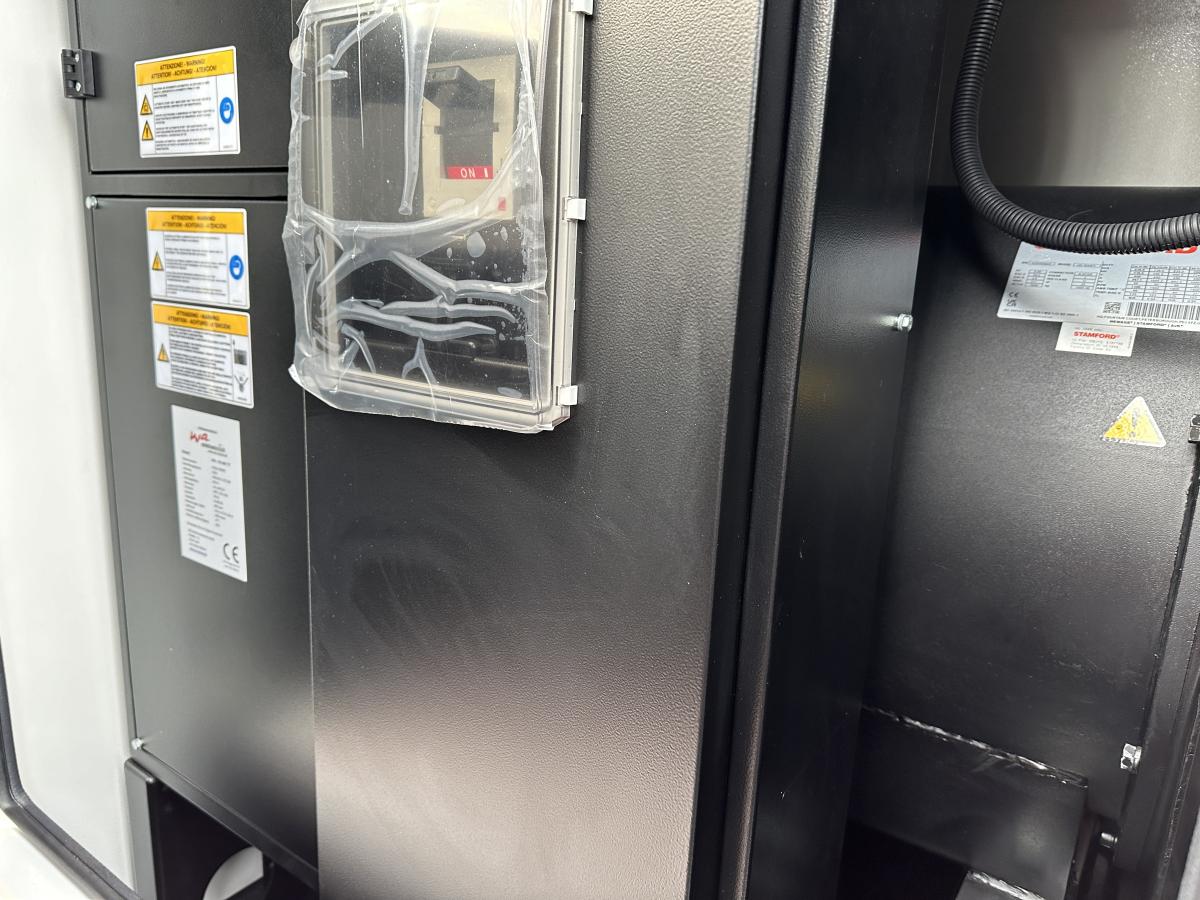

The built-in emergency power control, manufacturer Comap, type IG 200 is designed for uninterrupted reverse synchronization overlapping synchronization with control of your on-site network generator switchover.

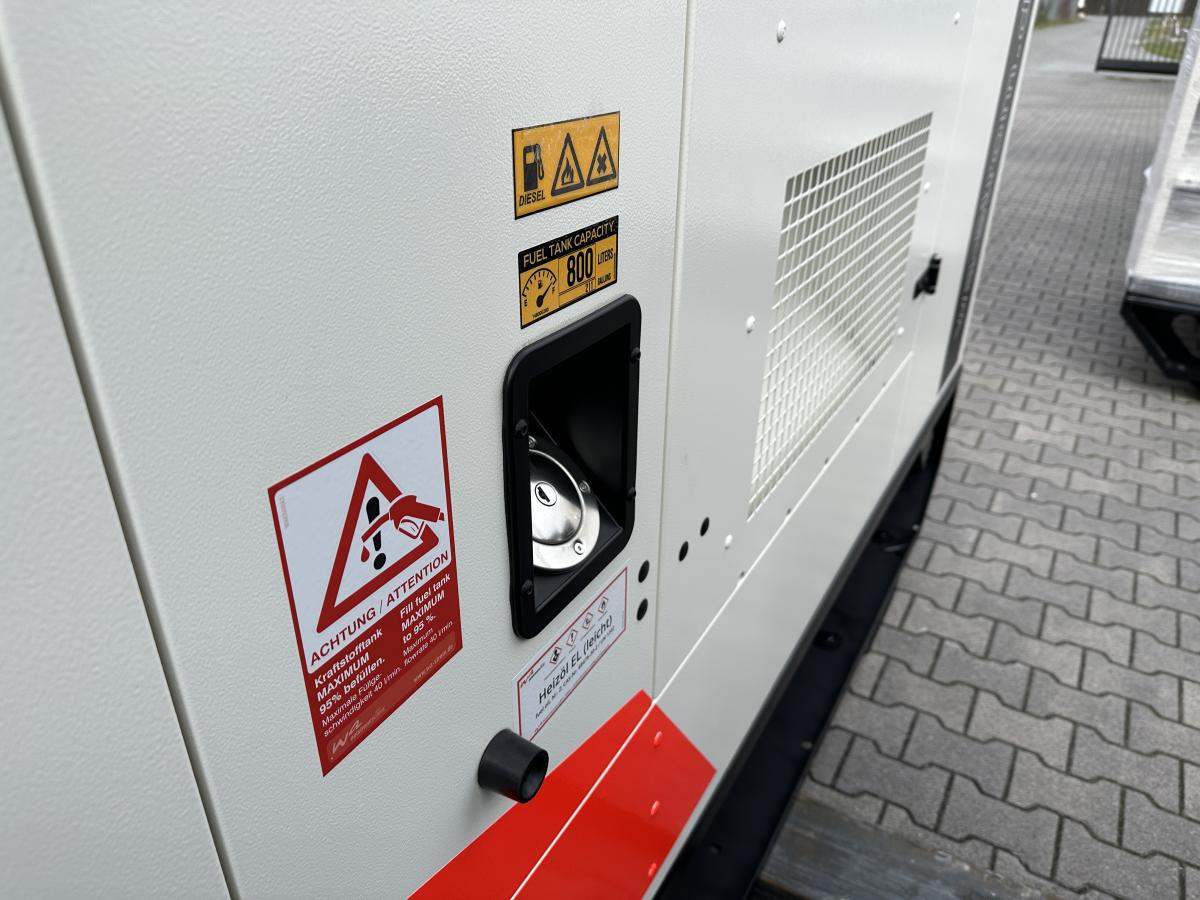

Internal day tank (800 liters) in the base frame with drip tray. Optionally with leakage monitoring
Fuel consumption according to Volvo data sheet:
Consumption at 50% approx. 59 liters / hour | sufficient for approx. 13.5 hours
Consumption at 75% approx. 89 liters / hour | sufficient for approx. 8.9 hours
Consumption at 100% approx. 120 liters / hour | sufficient for approx. 6.6 hours
-/-
Speed Control | Speed governor class Electronic G3
exhaust gas temperature | Exhaust gas temperature °C 471
exhaust gas volume flow | Exhaust gas volume m³/h 5,556
Combustion air volume flow | Combustion air volume m³/h 2,280
Maximum exhaust back pressure | Maximum allowed back pressure mbar 100
thermal energy / waste gas | Heat reaction to exhaust week 375
thermal energy / charge air | Heat reaction to charge air KW -/-
thermal energy / cooling water | Heat reaction to cooling water week 187
thermal energy / radiation | Heat reaction to ambient week 18
Cooling air volume flow | Cooling air flow m³/h 36,000
